100G Ethernet QSFP28-100G-ZR4 100G QSFP28 ZR4 Optical Transceiver
Description
HILINK’s QSFP28-100G-ZR4 is designed for 80km optical communication applications. Optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four electric-absorption modulated lasers (Lan- WDM) with 1296, 1300, 1305, and 1309 nm center wavelengths.
Product Features
Support line rates from 103.125 Gb/s;
Lane bit rate 25.78 Gb/s 100GE
Up to 80km transmission with KR4-FEC.
LAN WDM EML laser and PIN receiver with SOA;
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
I2C interface with integrated Digital Diagnostic monitoring;
QSFP28 MSA package with duplex LC connector;
Single +3.3V power supply
Commercial :< 4.5W
Industrial :<5.5W
Application
100GBASE-ZR4 Ethernet
100G Datacom& Telecom connections
Data Center
Related Product
| QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100M LC |
| QSFP28-100G-LR4 | 100GBASE-LR4 1310nm 10KM LC |
| QSFP28-100G-ER4 | 100GBASE-ER4 1310nm 40KM LC |
| QSFP28-100G-ZR4 | 100GBASE-ZR4 1310nm 80KM LC |
| QSFP28-100G-eZR4 | 100GBASE-eZR4 1310nm 100KM LC |

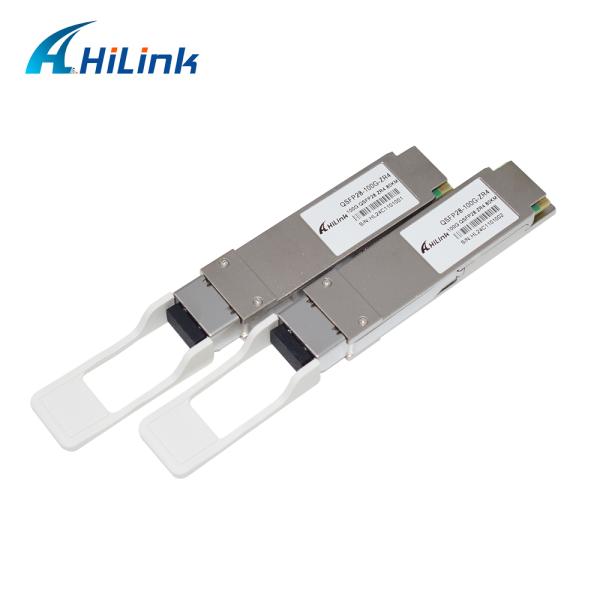

Product Picture Shows
