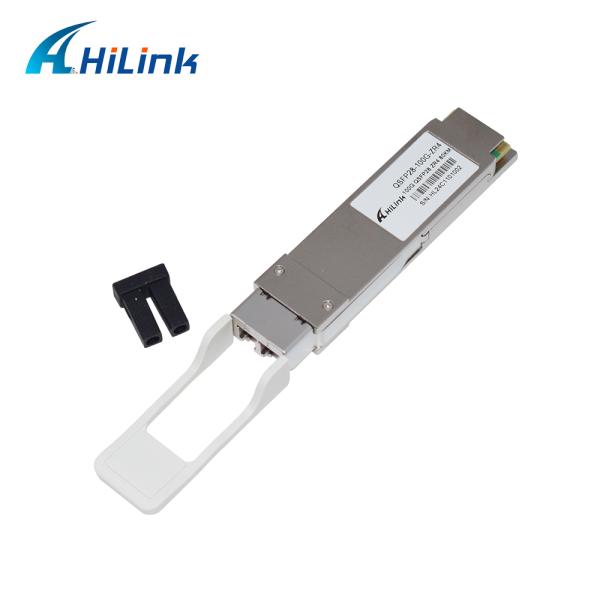

100G QSFP28 ZR4 80KM 1310nm QSFP 80KM LC Transceiver Module DOM
Description
HILINK’s QSFP28-100G-ZR4 is designed for 80km optical communication applications. Optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four electric-absorption modulated lasers (Lan- WDM) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector. On the receive side, four lanes of optical data streams are optically DE multiplexed by an integrated optical DE multiplexer. After the optical signal is amplified by SOA, DEMUX separates four channels which are recovered by PIN photodetector and cross-impedance amplifier, retimed and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
Product feature
Support line rates from 103.125 Gb/s;
Lane bit rate 25.78 Gb/s 100GE
Up to 80km transmission with KR4-FEC
LAN WDM EML laser and PIN receiver with SOA;
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
High speed I/O electrical interface (CAUI-4);
I2C interface with integrated Digital Diagnostic monitoring;
QSFP28 MSA package with duplex LC connector;
Single +3.3V power supply
Power dissipation
Commercial :< 4.5W
Industrial :<5.5W
Complies with EU Directive 2015/863/EU
Application
100GBASE-ZR4 100G Ethernet
Telecom networking
Related Product
| Part Number | Product Description |
| HL-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP28-100G-SR4 | QSFP28, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP28-100G-LR4 | QSFP28, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP28-100G-ER4 | QSFP28, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP28-100G-ZR4 | QSFP28, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 60KM |
| HL-QSFP28-100G-ZR4 | QSFP28, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM |
