18CH CCWDM Mutiplexer LC/UPC for WDM Network Mini CWDM Module
Hilink's Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics.This technology is a lead-free packaging platform with high reliability.
Highlights
* Mini form
* Ultra low loss
* High channel isolation.
Features
* Ultra-Low Insertion Loss
* High Isolation
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Mounted in 19" 1U Racks or ABS box optional
* Wide Operating Wavelength: From 1260nm to 1620nm
* Wide Operating Temperature: From -40℃ to 85℃
* High Reliability and Stability
Compliance
| Description | Unit | Min | Typical | Max. |
| Optional channel loss | dB | | 0.8 | 1.1 |
| Pass band width | nm | 13 | | |
| Flatness | dB | | 0.3 | 0.5 |
| Adjacent channel isolation | dB | 30 | 35 | |
| Non adjacent channel isolation | dB | 40 | 45 | |
| Directivity | dB | 55 | | |
| PDL | dB | | | 0.2 |
| PMD | ps | | | 0.2 |
| Max. power | mw | 500 |
| Pass channel insertion loss | P | dB | 0.8 | 1.0 |
| A | 1.0 | 1.5 |
| Channel wavelength | nm | 1471 1491 1511 1531 1551 1571 1591 1611 Can be selected on request or any 4channel between 1260-1625 |
| Operating temperature | °C | 0 ~+70 |
| Storage temperature | °C | -40 ~+85 |
| Package | mm | 43(L)X28(W)X6(H) or customerized |
Applications
* CWDM System
* PON Networks
* CATV Links
* WDM Network

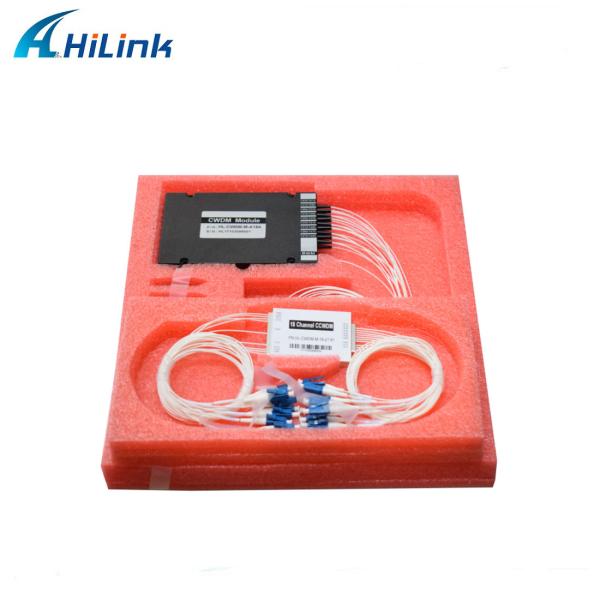

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
