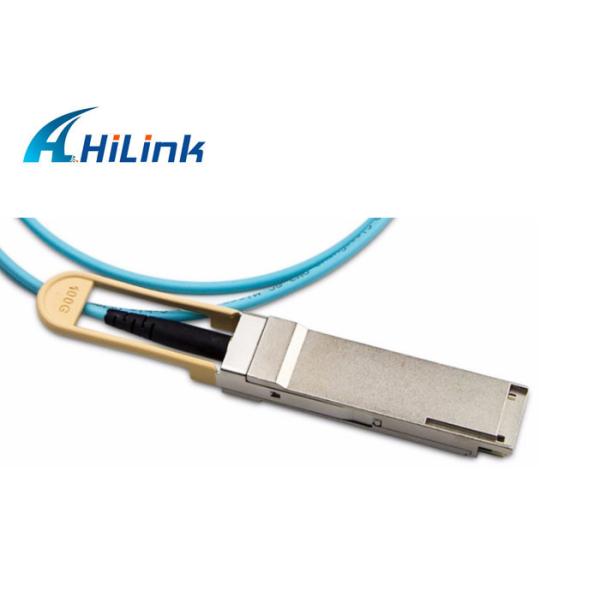

100G QSFP28 to QSFP28 AOC Active Optical Cable 3 Meter Four channel

Name: 100G QSFP28 to QSFP28 AOC Active Optical Cable 3 Meter Four channel
Brand: HILINK
Price: 1 USD

Wholesale 100G QSFP28 to QSFP28 AOC Active Optical Cable 3 Meter Four channel from china suppliers

Brand Name : HILINK

Model Number : Hilink-QSFP28-xxQSFP28

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000 pcs per Week

Delivery Time : 1-6 days

Packaging Details : Carton box, Retail box, Or by required

Data transfer rate : 100G/s

Connector 1 : QSFP28

Connector 2 : QSFP28

Cable Length : 3meter

Wavelength : 850nm

media type : MMF

Contact Now

QSFP28 to QSFP28 AOC 3m

100G QSFP28 AOC is a 100 Gb/s parallel active optical cable for storage, data, and high-performance computing interconnectivity. It transmits error-free parallel 4x25 Gb/s data over multimode fiber (MMF) cables. Based on VCSEL array technology and designed with QSFP28 MSA-compliant high-density connectors, this cable is compact, lightweight, and low power. The 100G QSFP28 AOC is ideally suited for datacenter reaches up to 100m for InfiniBand EDR, 4x25, and 100G Ethernet.

Features

Four-channel full-duplex active optical cable

Transmission data rate up to 26Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,70m
Low power consumption <3.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor

Applications for 100G QSFP28 Active Optical Cable

100G Ethernet
Datacenter
Infiniband QDR/DDR/SDR
4G/8G/10G Fibre Channel

AOC Product Series

Cable Length can be done as customer required.

Part Name	Product Description
SFP-AOC-1m	10GBASE SFP+ AOC Cable 1m
SFP-AOC-2m	10GBASE SFP+ AOC Cable 2m
SFP-AOC-3m	10GBASE SFP+ AOC Cable 3m
SFP-AOC-xxm	10GBASE SFP+ AOC Cable xxm
QSFP-AOC-1m	40GBASE QSFP+ AOC Cable 1m
QSFP-AOC-2m	40GBASE QSFP+ AOC Cable 2m
QSFP-AOC-3m	40GBASE QSFP+ AOC Cable 3m
QSFP-AOC-xxm	40GBASE QSFP+ AOC Cable xxm
QSFP-4XSFP-AOC-1m	40GBASE QSFP+ 4X10G SFP+ AOC Cable 1m
QSFP-4XSFP-AOC-2m	40GBASE QSFP+ 4X10G SFP+ AOC Cable 2m
QSFP-4XSFP-AOC-3m	40GBASE QSFP+ 4X10G SFP+ AOC Cable 3m
QSFP-4XSFP-AOC-xx m	40GBASE QSFP+ 4X10G SFP+ AOC Cable xxm
100G-QSFP28- AOC-1m	100G QSFP28 AOC Cable 1m
100G-QSFP28- AOC-xxm	100G QSFP28 AOC Cable xxm

100G QSFP28 to QSFP28 AOC Active Optical Cable 3 Meter Four channel
