100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Optical Transceiver DOM
General:
HL-QSFP28-100G-UD-80 provides 100GBase-BX throughput up to 80km over single-mode fiber (SMF) using wavelengths of 1273.54, 1277.89, 1282.26, 1286.66nm- TX/1295.56, 1300.05, 1304.58, 1309.14nm-RX(1295.56, 1300.05, 1304.58, 1309.14nm- TX/1273.54, 1277.89, 1282.26, 1286.66nm-RX) via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, data center, and storage area networks applications.
Product Features:
4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA with SOA
Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Simplex LC connector·
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications:
Data Center Interconnect
100G Ethernet
Enterprise networking
100G BIDI Serial:
| HL-QSFP28-100G-SRBD | 100GBASE SRBD 850nm 100M LC |
| HL-QSFP28-100G-BXD10 | 100GBASE BIDI 1331/1271nm 10KM LC |
| HL-QSFP28-100G-BXU10 | 100GBASE BIDI 1271/1331nm 10KM LC |
| HL-QSFP28-100G-BXD20 | 100GBASE BIDI 1310/1280nm 20KM LC |
| HL-QSFP28-100G-BXU20 | 100GBASE BIDI 1280/1310nm 20KM LC |
| HL-QSFP28-100G-BXD30 | 100GBASE BIDI 1309/1304nm 30KM LC |
| HL-QSFP28-100G-BXU30 | 100GBASE BIDI 1304/1309nm 30KM LC |
| HL-QSFP28-100G-BXD40 | 100GBASE BIDI 1309/1304nm 40KM LC |
| HL-QSFP28-100G-BXU40 | 100GBASE BIDI 1304/1309nm 40KM LC |
| HL-QSFP28-100G-BXD80 | 100GBASE BIDI 1280/1300nm 80KM LC |
| HL-QSFP28-100G-BXU80 | 100GBASE BIDI 1300/1280nm 80KM LC |

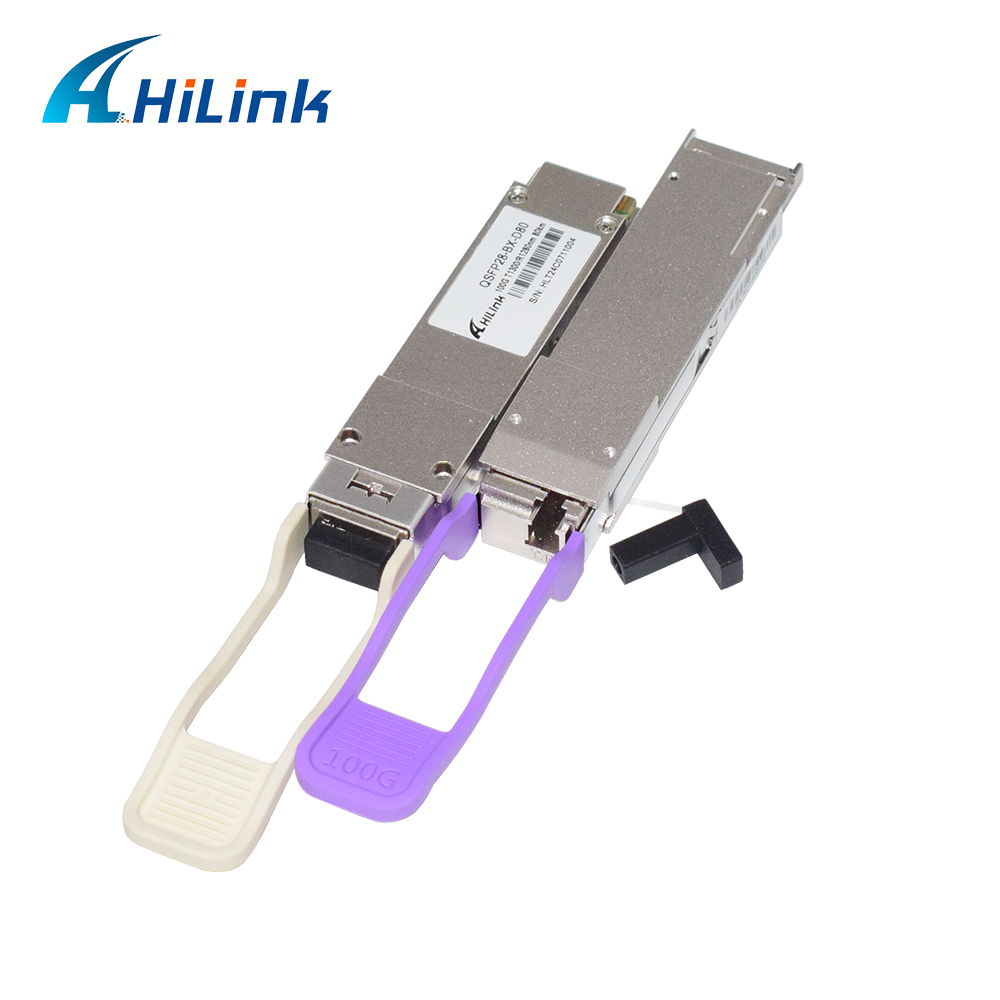

Product Picture Show:
Mechanical Dimensions
