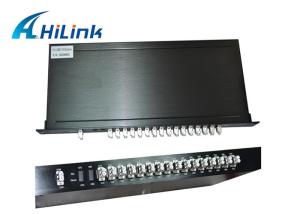

Customized CWDM 16 Channel Mux Dual Fiber 1U Rack Mount Low Insertion Loss
Feature
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Mounted in 191 u Racks or ABS box optional
- Wide Operating Wavelength:
From 1270nm to 1610nm
- Wide Operating Temperature:
From -40℃ to 85℃
- High Reliability and Stability
Applications
- CWDM System
- PON Networks
- CATV Links
- WDM Network
Compliance
- Telcordia GR-1209-CORE-2001
- Telcordia GR-1221-CORE-1999
- RoHS
Parameters For 1×N CWDM Mux/Demux Module
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 |
| Center Wavelength (nm) | ITU, ITU+1 |
| Passband (nm) | ITU±6.5 |
| Operating Wavelength (nm) | 1470~1610 or 1270~1610 |
| Channel Space (nm) | 20 |
| Fiber Type | SMF-28e or customer specified |
| IL (dB) (P/A Grade) | 0.7/1.0 | 1.4/1.7 | 2.0/2.5 | 2.5/3.0 |
| Isolation (dB) | Adjacent Channel | 30 |
| Non-Adjacent Channel | 50 |
| Ripple (dB) | 0.3 | 0.4 | 0.5 | 0.5 |
| PDL (dB) | 0.2 |
| PMD (ps) | 0.1 |
| RL (dB) | 45 |
| Directivity (dB) | 50 |
| Maximum Optical Power (mw) | 500 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
| Compact BOX Package (mm) | 100*80*10 | 140*115*18 |
| LGX Package | 1U, 2U |
| 19’’ Rack mount Package | 1U |
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
