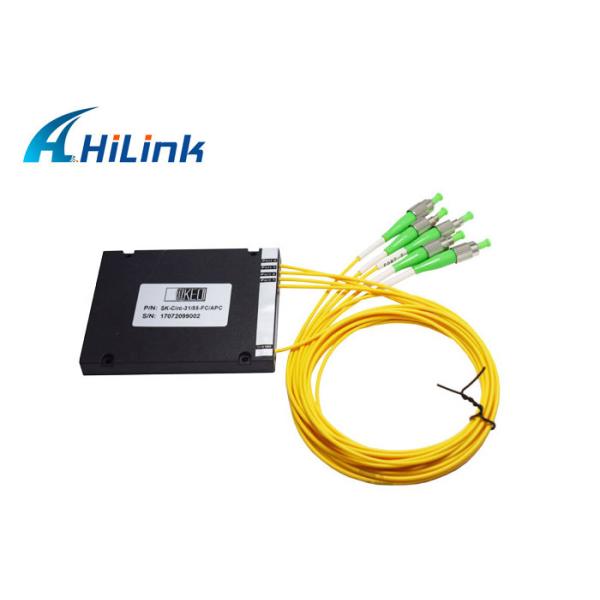

C+L Band WDM Fiber Optic Circulator Polarization Insensitive Components

  • 1
  • 2
  • 3

Brand Name : HILINK

Model Number : FCIR-XX

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union

Delivery Time : 1-3 Days

Packaging Details : Poly bag

Price : Negotiable

key word : optical circulator

package : steel tube

connectors : SC LC FC

Ports : 3 ports

application : wdm system

Storage Temperature : -40 to +85°C

Contact Now

C+L Band WDM Fiber Optic Circulator Polarization Insensitive Components

General

An optical circulator is a special optical passive component apply in optical device

it can be used to separate optical powers that transfer in opposite directions.

by in one single optical fiber, analogous to the operation of an electronic circulator.

An standard optical circulator is a three-port device that allows light to travel in only one direction

Example - from port 1 to port 2, then from port 2 to port 3.

This feature is very important to optical bidirectional transmission and communication.

Usually, it is used for optical transceiver, FBG( fiber Bragg grating) filter and optical amplifier.

Features:

  • Low Back Reflection
  • High Extinction Ratio
  • Low Insertion Loss & High Return Loss

Application

  • DWDM system
  • Add-Drop Multiplexing
  • Fiber AmplifierFiber Sensor
  • Chromatic Dispersion Compensation Devices
  • Fiber Bragg Grating

Specifications

Parameter P Grade
Configuration Port 1 to Port 2 to Port 3
Operation Wavelength (nm) 1525 to 1610
Isolation (dB) Typical 0.8
Maximum 1.0
Typical Isolation (dB) 50
Minimum Isolation (dB) 35
Cross Talk (dB) ≥50
Polarization Dependent Loss (dB) <0.2
Polarization Mode Dispersion <0.1
Return Loss(dB) ≥50
Power Handling (mW) 500
Opterating Temperature (℃) -5~+75
Storage Temperature (℃) -40~+85
Package dimension (mm) Φ5.5xL50 orΦ5.5xL63

Specifications may change without notice.

Above specification are for device without connector.

C+L Band WDM Fiber Optic Circulator Polarization Insensitive Components

C+L Band WDM Fiber Optic Circulator Polarization Insensitive Components

Our factory shows

C+L Band WDM Fiber Optic Circulator Polarization Insensitive Components
