SFP-10G-AOC20M AOC Active Optical Cable 20M Length CE FCC Certification

Brand Name : HILINK

Model Number : HL-SFP-10G-AOC20M

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Payment Terms : Western Union, L/C, T/T,Paypal

Supply Ability : 500pcs /week

Packaging Details : Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Manufacturer : HiLink

Interface Type : Gigabit Ethernet, 10G

Module Fiber Type : multi-mode

Length : 20 meter

Connector : SFP slot, SFP slot

Cable Type : 50/125um multi-mode, Active Optical

Price : Negotiable

Contact Now

SFP-10G-AOC20M AOC Active Optical Cable 20M Length CE FCC Certification

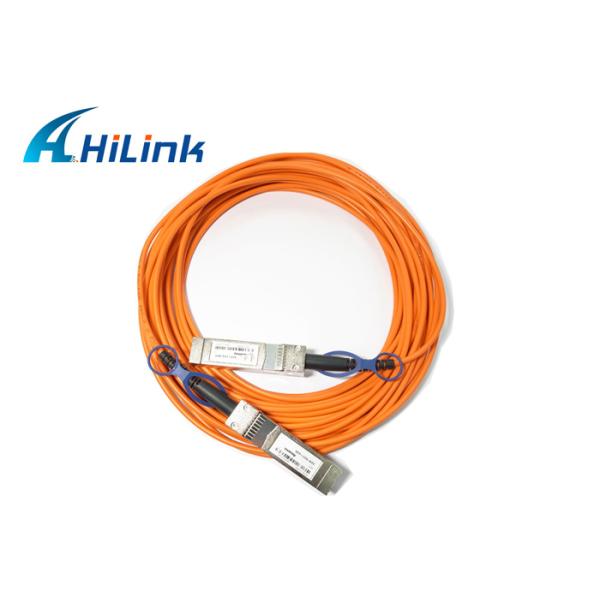

The SFP-10G-20AOC is an active optical direct attach cable with SFP+ connectors and has 20m length. Cable provides short distance (same shelf) inexpensive connectivity at 10G rates between two 10G data ports. Compatible with most networking brand vendors.

Cable has been tested and found compatible with most major brand networking vendors (including Cisco, Juniper and Edge-Core TOR switches).

Using industry leading VCSEL technology and an advanced new light engine design, the 20M Active Optical Cable Assembly for SFP+ Applications provides exceptional cost/performance value. The SFP+ AOC delivers a single bi-directional channel operating at up to 10.3125 Gbps while using a subtle 240mW (typical) of energy per end.

Connectors

SFP+20PIN footprint

Cable length 20m
Connect speed 10G
Cable type AOC
Operation Active

FEATURES:

  • Product Type: SFP+ Active Optical Cable
  • Connector A: SFP+
  • Connector B: SFP+
  • Length: 20 meter
  • Fiber Type: Multimode
  • Wavelength: 850 nm
  • Data Rate: Up to 10.5 Gbps
  • Hot Swappable: Yes
  • Temperature Range: Commercial 0°C to 70°C

APPLICATION:

  • High-performance computing clusters
  • 10G Ethernet applications (10GbE)
  • 4G and 8G Fiber Channel Applications (4GFC/8GFC)
  • 1x InfiniBand QDR. DDR, SDR
  • Servers, switches, storage and host card adapters (NIC)

ORDERING INFORMATION :

SFP+ Cable SFF8432 0.5M 1M 2M 3M 5M 7M 10M / /
SFP+ Active Cable SFF-8432 / 1M / 3M 5M 7M 10M 12M 15M
XFP Active Cable 0.5M 1M 2M 3M 5M 7M 10M / /
QSFP+ To QSFP Cable 0.5M 1M 2M 3M 5M 7M / / /
QSFP+ to 4SFP+ Cable 0.5M 1M 2M 3M 5M / / / /
Mini SAS 8644 Cable 0.5M 1M 2M 3M 5M 7M 10M / /
MiniSAS 8088 Cable 0.5M 1M 2M 3M 5M 7M 10M 12M /
SFP+ AOC Cable 1M 2M 3M 5M 10M 15M 20M 50M 100M

PRODUCT SHOW :

SFP-10G-AOC20M AOC Active Optical Cable 20M Length CE FCC Certification

SFP-10G-AOC20M AOC Active Optical Cable 20M Length CE FCC Certification
