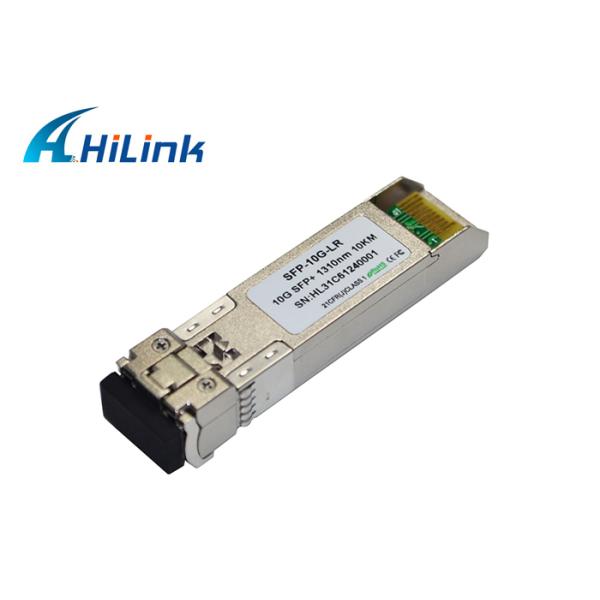

1310nm 20Km SFP+ Transceiver Module SFP-10G-LR Dual Fiber LC Connector

Name: 1310nm 20Km SFP Transceiver Module SFP10GLR Dual Fiber LC Connector
Brand: HILINK
Price: 1 USD

Wholesale 1310nm 20Km SFP+ Transceiver Module SFP-10G-LR Dual Fiber LC Connector from china suppliers

Brand Name : HILINK

Model Number : HL-10G-LR

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 2000/pcs/month

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Product Name : 10G-SFP-LR

Transmission Rate : 10G

Wavelength : 1310nm

Transmission Distance : 10km

Connector : LC

Warranty : 3 years

Contact Now

● Hilink SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. 5

Features

● Duplex LC Connector

● Support hot-pluggable

● Metal with lower EMI

● Excellent ESD protection

● DFB Transmitter and PIN Receiver

● Typical Center Wavelength:1310nm

● Max link length up to 10Km on SMF

● RoHS Compliant and Lead-Free

● Digital diagnostic compatible with SFF-8472

● Case Operation Temperature:-5℃~+70℃

● Single 3.3V power supply and Low power dissipation <1.0W

Application

● 1200-SM-LL-L 10G Fibre Channel
● 10GBASE-LR/LW 10G Ethernet

Parameter	Range	Accuracy	Calibration
Temperature	-5 to +85°C	±3°C	Internal
Supply Voltage	2.97 to 3.63V	±3%	Internal
Bias Current	3mA to 80mA	±10%	Internal
TX Power	-7.2~0.5dBm	±3dB	Internal
RX Power	-15~0.5dBm	±3dB	Internal

1310nm 20Km SFP+ Transceiver Module SFP-10G-LR Dual Fiber LC Connector
