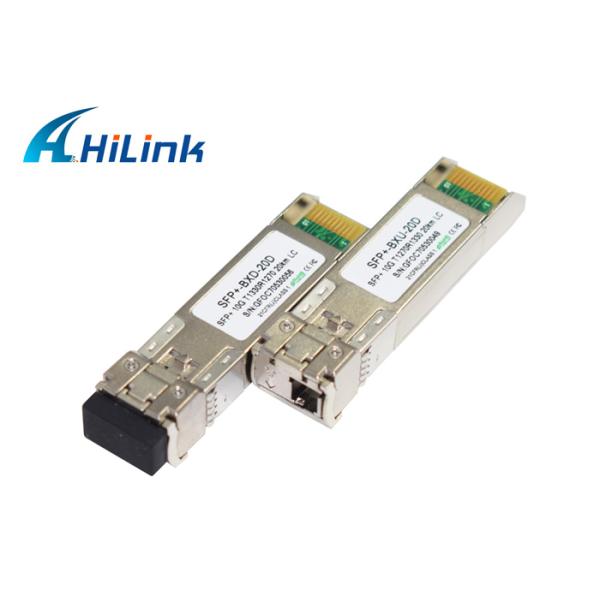

20Km 10Gb BIDI SFP
Tx: 1270nm/ Rx: 1330nm BIDI SFP+ Transceiver for 10GbE
Tx: 1330nm/ Rx: 1270nm BIDI SFP+ Transceiver for 10GbE
Features
Operating data rate up to10.3Gbps
Type: 1330nmDFB Tx/1270nmRx 1270nmDFB Tx/1330nmRx
1270nm DFB Transmitter/ 1330nm Receiver
Distance up to 20km
Power budget 9dB at least
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Hot Pluggable
Operating Case Temperature
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
Compliant with MSA SFP Specification
DDM function
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
10G BiDi SFP
| BIDI SFP+ 10G |
| Part NO. | Data Rate | Wavelength | Connector | Source | Output Power | Sensitivity | Notes |
| TX/RX(nm) |
| HLB223X2-LCD10/20 | 10Gbps | 1270/1330 | 10-20km | DFB+PIN | -7~0.5dBm | -14.4dBm | DDM |
| HLB232X2-LCD10/20 | 10Gbps | 1330/1270 | 10-20km | DFB+PIN | -7~0.5dBm | -14.4dBm |
Also for 1.25Gbps
| | HAILI BIDI SFP (155M/1.25G LC Interface) With or without DDMI |
| BIDI SFP 155MB LC/SC available | BSFP-L155M-SU | 155M | 1310/1550 | 3km | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-SD | 155M | 1550/1310 | 3km | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-LU | 155M | 1310/1490 | 20km | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-LD | 155M | 1490/1310 | 20km | BIDI SFP | 0~70 | DFB+PIN |
| BSFP-L155M-E1U | 155M | 1310/1550 | 40KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-E1D | 155M | 1550/1310 | 40KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-E2U | 155M | 1310/1490 | 40KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L155M-E2D | 155M | 1490/1310 | 40KM | BIDI SFP | 0~70 | DFB+PIN |
| BSFP-U80 | 155M | 1310/1550 | 80KM | BIDI SFP | | DFB+PIN |
| BSFP-D80 | 155M | 1550/1310 | 80km | BIDI SFP | | DFB+PIN |
| BIDI SFP 1.25GB LC/SC available | BSFP-L1.25G-SU | 1.25G | 1310/1550 | 2KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L1.25G-SD | 1.25G | 1550/1310 | 2KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L1.25G-LU | 1.25G | 1310/1550 | 20KM | BIDI SFP | 0~70 | FP+PIN |
| BSFP-L1.25G-LD | 1.25G | 1550/1310 | 20KM | BIDI SFP | 0~70 | DFB+PIN |
| BSFP-L1.25G-EU | 1.25G | 1310/1550 | 40KM | BIDI SFP | 0~70 | DFB+PIN |
| BSFP-L1.25G-ED | 1.25G | 1550/1310 | 40KM | BIDI SFP | 0~70 | DFB+PIN |
| BSFP-U80 | 1.25G | 1310/1550 | 80KM | | | DFB+PIN |
| BSFP-D80 | 1.25G | 15501310 | 80km | | | DFB+PIN
|
