SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver

Name: SFP10GSR Multimode fiber MMF 10G 850nm 300m SR SFP Transceiver
Brand: HILINK
Price: 1 USD

Wholesale SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver from china suppliers

Brand Name : HILINK

Model Number : HL-10-SR

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotation

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 1000/pcs/month

Packaging Details : Blister Packaging

Wavelength : 850nm

Transmission distance : 300m

DDM : Yes

Fiber type : MMF

Warranty : 3 years

Tansmission rate : 10G

Contact Now

SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver

Features:
850nm VCSEL Transmitter
Data transfer rate: 10.3Gbps
Distance up to 300m
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector
Compliant with MSA SFF-8431, IEEE 802.3ae
Power Dissipation: SFP+< 1W
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70 Temp

Applications:
10GBASE-SW/SR
10G Fiber Channel
Other Optical Link

10G SFP+ Transceiver

Part Number	Application	Data Rate	Wavelength	Distance	Connector Type
HL-SFP-10G-SR	SFP+ 10GBASE-SR	10G	850nm	300m	LC
HL-SFP-10G-LR	SFP+ 10GBASE-LR	10G	1310nm	10km	LC
HL-SFP-10G-LRM	SFP+ 10GBASE-LRM	10G	1310nm	220m	LC
HL-SFP-10G-ER	SFP+ 10GBASE-ER	10G	1550nm	40km	LC
HL-SFP-10G-ZR	SFP+ 10GBASE-ZR	10G	1550nm	80km	LC

SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber.
This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel.

SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver

Product Tags:

fiber optic module

fiber transceiver module

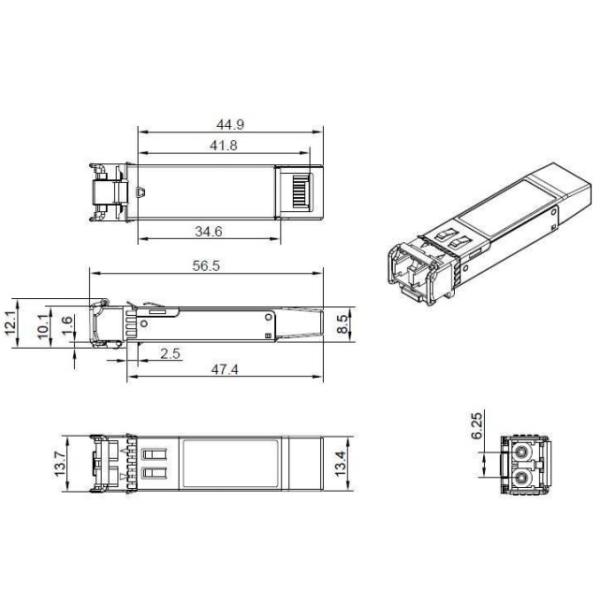

SFP-10G-SR Multimode fiber MMF 10G 850nm 300m SR SFP+ Transceiver Images
