Brand Name : HILINK
Model Number : 1.25G-CWDM-1410-80D
Certification : CE FCC Rohs
Place of Origin : Guangdong, China
MOQ : 1pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Delivery Time : 1-3 days
Packaging Details : Blister Packaging, 10pcs/ tray
Data Rate : 1.25Gbps
Wavelength nm : 1410
Transfer Distance : 80km SMF
RX Sensi : ≤-24dBm
Connector : Dual LC
Warranty : 3 years
* Please leave us a message about the brand your switch is compatible with.Then we will match the code for you .
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.
FEATURES :
Product Name | CWSFP-1410-80D | Vendor Name | HiLink |
Form Type | SFP | Max Data Rate | 1000Mbps |
Wavelength | 1410nm | Max Cable Distance | 80km |
Interface | LC Duplex | Optical Components | DFB CWDM+PIN CWDM |
Cable Type | SMF | DOM Support | Yes |
TX Power | 0~5dBm | Receiver Sensitivity | <-25dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Power Supply | +3.3V |
RELEVANT SOLUTION :
PRODUCT SHOW :
![]() |

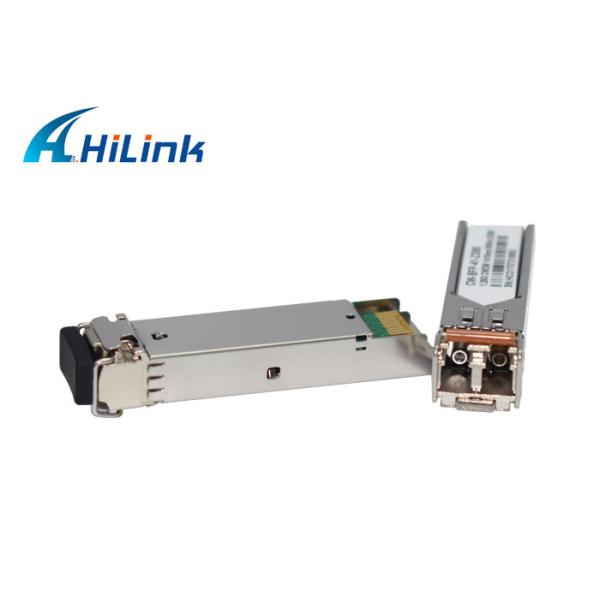

CWDM MUX Modules Optical Transceiver Module 1.25G SFP 80KM 1410nm LC DDM -25dB with isolator Images |
