XFP-10GER-OC192IR 10G XFP Transceiver , 1550nm transceiver fiber optic 40KM

  • 1
  • 2

Brand Name : HILINK

Model Number : HL-XFP-10G-ER

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union , L/C ,AliExpess , Alipay , etc

Supply Ability : 1500 pieces / month

Delivery Time : 2-5 days

Packaging Details : Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Module Name : XFP-10G - ER

Data Rate (max) : 10.3125Gbps

Transmission distance : 40Km

Wavelength : 1550nm

Warranty : 3 years

Fiber Type : Single - mode

Connectors : duplex LC connectors

Contact Now

This module can be make to be compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.


1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance


DESCRIPTION :

The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.

Transmitter (0~70℃@9.953Gb/s~11.1Gb/s)
Parameter Symbol Min. Typ. Max. Unit Note
Operating Date Rate 9.95 11.1 Gb/s
Ave. Output Power Po -1 2 dBm 1
Output Centre Wavelength λ 1530 1565 nm
Disable Power Poff -30 dBm
Extinction Ratio ER 8.2 dB 1
Sidemode Supression Ratio 30 dB
Rise/Fall Time (20%~80%) Tr/Tf 45 ps
Dispersion penalty 2 dB 1
Generation Jitter 1(20KHZ-80MHZ) 0.3 UIp-p 1
Generation Jitter 2(4MHZ-80MHZ) 0.1 UIp-p 1
Optical Eye Mask 1 GR-253-CORE/ITU-T G.691 1
Optical Eye Mask 2 IEEE802.3ae 2
Reeceiver (0~70℃@9.953Gb/s~11.1Gb/s)
Parameter Symbol Min. Typ. Max. Unit Note
Operating Date Rate 9.95 11.1 Gb/s
Overload Po 0.5 dBm
Input Centre Wavelength λ 1270 1600 nm
Receiver Sensitivity Pmin -16 dBm 1
Stressed Sensitivity in OMA -11.3 dBm 2
LOS Assert LosA -30 dBm
LOS De-assert LosD -18 dBm
LOS Hysteresis 0.5 4 dB
Optical Return Loss 14 dB
Jitter Tolerance GR-253-CORE/ITU-T G.783 1

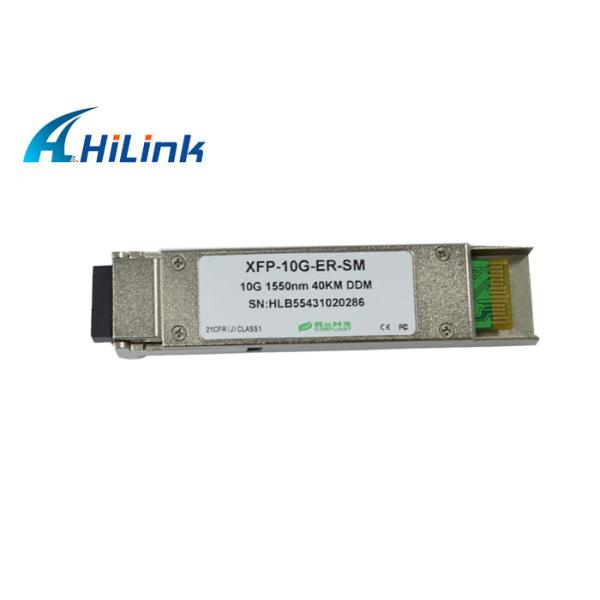

PRODUCT SHOW :
XFP-10GER-OC192IR 10G XFP Transceiver , 1550nm transceiver fiber optic 40KM
