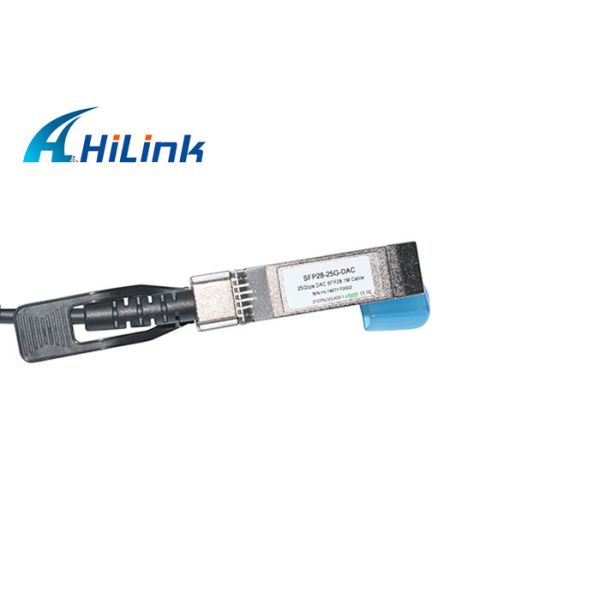

Passive DAC Twinax 5G 30AWG Direct Attach Copper Cable SFP28

Name: Passive DAC Twinax 5G 30AWG Direct Attach Copper Cable SFP28
Brand: HILINK
Price: 1 USD

Wholesale Passive DAC Twinax 5G 30AWG Direct Attach Copper Cable SFP28 from china suppliers

Brand Name : HILINK

Model Number : 25G SFP28 DAC

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union，paypal

Supply Ability : 100/pcs/week

Packaging Details : 20 Centimeters * 17 Centimeters * 3 Centimeters

Name : HL-DAC-25G-x

Wire AWG : 30/26AWG

Connector type : SFP28-SFP28

Cable length : 1M

Logo : Customized

Temperature : 0-70

Application : 25G Ethernet

Contact Now

1m 30AWG 25G SFP28 Passive DAC Twinax Direct Attach Copper Cable

General Description

The SFP28 25G Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).

Features

• Up to 25.88243 Gbps data rate

• Up to 5 meter transmission

• Hot-pluggable SFP 20PIN footprint

• Improved Pluggable Form Factor(IPF)

compliant for enhanced EMI/EMC

performance

• Compatible to SFP28 MSA

• Compatible to SFF-8402 and SFF-8432

• Temperature Range: 0~ 70 °C

Benefits

• Cost-effective copper solution

• Lowest total system power solution

• Lowest total system EMI solution

• Optimized design for Signal Integrity

Applications

25G Ethernet

Product Description

• The SFP28 passive cable assemblies are high performance, cost effective I/O solutions for 25G Ethernet. SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget

Compatibility brand	Cisco,HP,Juniper,Finisar,D-Link,Alcatel,Hilink,etc
Application	Telecommunication, Data center
Power Supply	+3.3V
Operating Temperature	0 ℃ to 70 ℃
Wire Gauge	30AWG
Conductor Material	Copper
Data Rate	25G

Passive DAC Twinax 5G 30AWG Direct Attach Copper Cable SFP28
