Product Features
Ø Supports up to 25.78Gbps bit rates
Ø Hot-pluggable SFP+ footprint
Ø 850nm VCSEL laser and PIN photodiode
Ø Up to 70m for OM3-MMF and 100m for OM4-MMF transmission
Ø Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Ø Compatible with RoHS
Ø Single +3.3V power supply
Ø Real Time Digital Diagnostic Monitoring
Ø Operating case temperature:
Standard: 0 to +70°C
Applications
Ø 25.78Gb/s single lane 100GE SR4
Description
The SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 70m transmission distance with OM3 MMF or 100m transmission distance with OM4 MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
OEM and ODM
OEM/ODM order is available

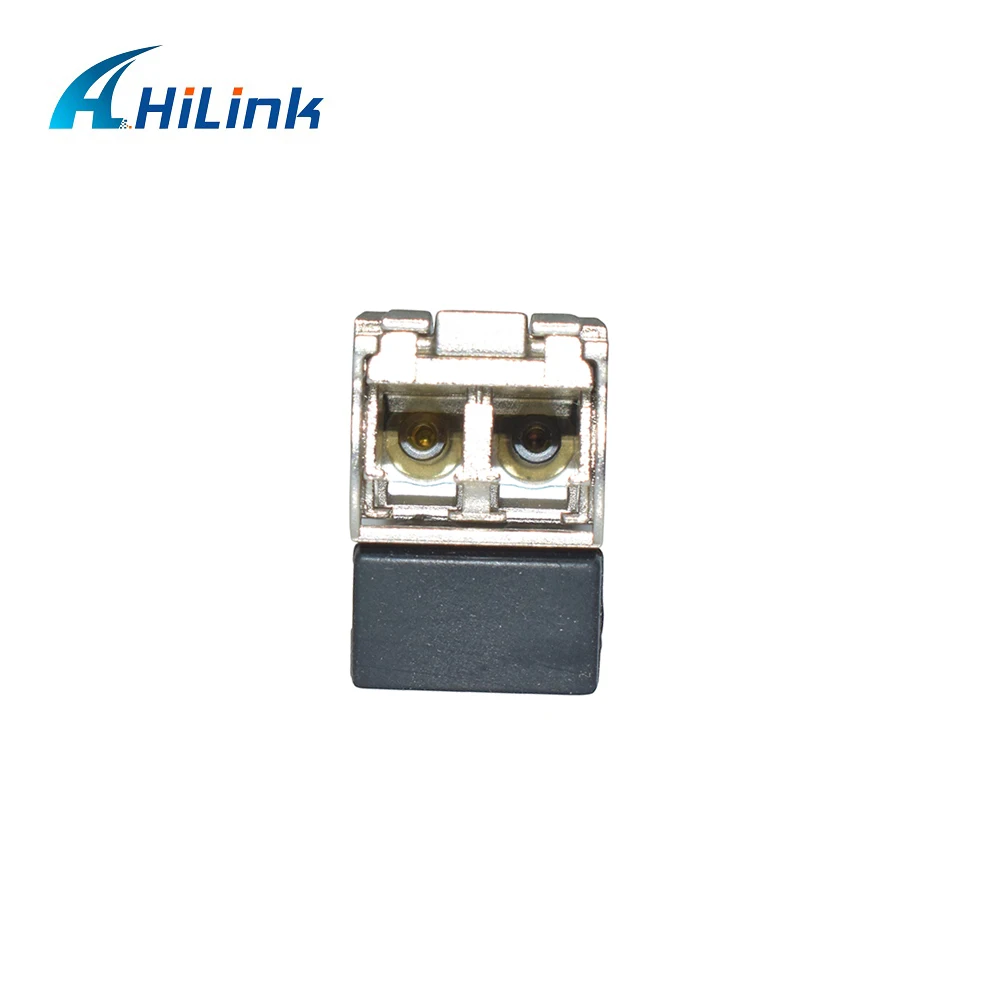

Picture Show
Transceiver functional diagram
Digital Diagnostic Memory Map
The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).
The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.
The digital diagnostic memory map specific data field defines as following:
Pin Descriptions
Recommended Interface Circuit
Mechanical Dimensions
Ordering information
| Part Number | Product Description |
| SFP28-MM85-S1C | 850nm, 25.78Gbps, LC, OM3-MMF 70m/OM4-MMF 100m, 0°C~+70°C |
