1W 10G CWDM SFP+ 1390nm 10km DOM Transceiver Module

Coarse Wavelength Division Multiplexing 10G CWDM SFP+ 1390nm 10km DOM Transceiver Module

Product Features

Supports 9.95 to 10.5Gb/s bit rates

Duplex LC connector

Hot pluggable SFP+ footprint

Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector

Applicable for 20km SMF connection

Low power consumption, < 1W

Digital Diagnostic Monitor Interface

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

Electrical interface compliant to SFF-8431

Operating case temperature:

Commerical:0 to 70 °C

Industrial:-40 to 80 °C

Applications

10GBASE-LR/LW at 10.3125Gbps

10G Ethernet

Other optical links

Product Descriptions

HLSCXX1XL-CD10 CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.

This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

10km DOM Transceiver Module

1390nm DOM Transceiver Module

10G CWDM Transceiver Module

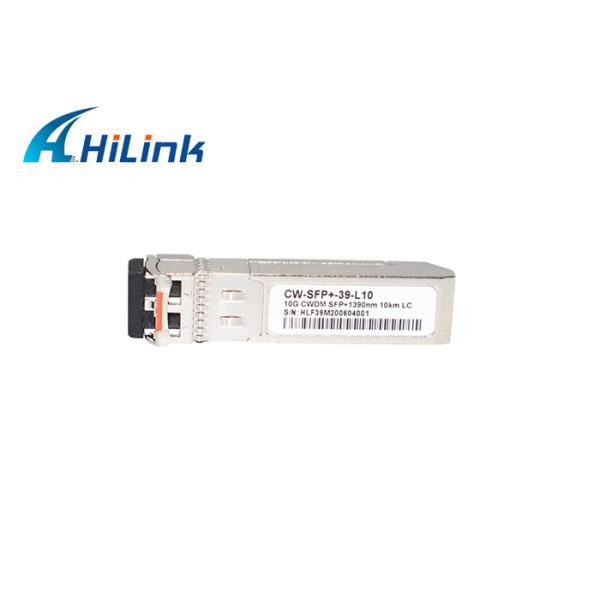

1W 10G CWDM SFP+ 1390nm 10km DOM Transceiver Module Images
