25G MMF 850nm 100m SFP Fiber Optical Module SFP Optical Transceiver 100m
25G SFP28 transceivers, This 850 nm VCSEL 25Gigabit SFP28 transceiver is designed to transmit and receive optical data over 50 μm multimode optical fiber OM3 70m and OM4 100m.
The SFP28 SR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.
Description
| Specification |
| Product name | 25G SFP28 MMF |
| Product Model | HL-SFP28-SR |
| Transmission rate | 25G |
| Working voltage | 3.3V |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Shell material | metal |
| Transmission distance | 100m |
| Wavelength | 850nm |
| Interface | LC |
Features
- Hot-pluggable SFP28 form factor
- Supports 25Gbps data rate
- Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
- 850nm VCSEL laser and PIN photo-detector
- Internal CDR on both Transmitter and Receiver channel
- Duplex LC receptacle
- Single 3.3V power supply
- Power dissipation < 1W
- Digital diagnostics functions are available via the I2C interface
- RoHS-6 compliant
- Commercial case temperature range: 0°C to 70°C
Applications
Ø 25.78Gb/s single lane 100GE SR4
Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.
Guarantee
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).
Technician support
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Product series
Hilink provides active optical transceivers, DAC For Data center and passive products for the global operators, channel distributors and equipment manufacturers:
1. Active optical transceivers: 100G QSFP28 CFP2 /40G QSFP+ / SFP+ / XFP / X2 / XENPAK / SFP / GBIC / CWDM / DWDM / etc.

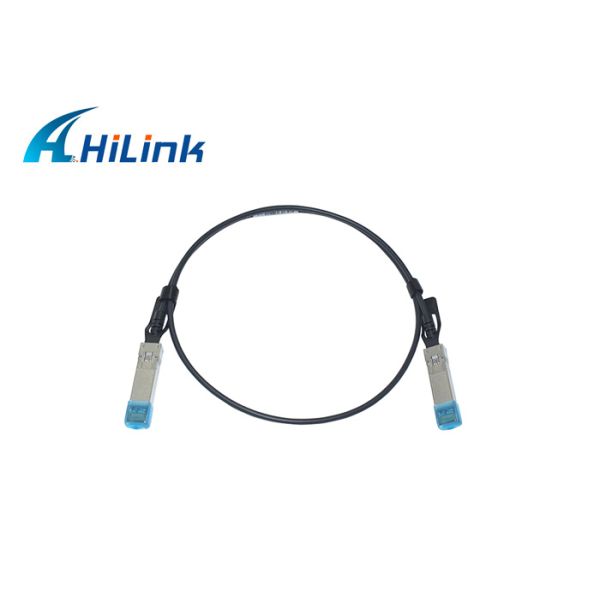

2. Direct Attached Cable for Date center 100G QSFP28, 40G QSFP+ AOC/ 40G and 10G Active or Passive Copper Cables etc.
