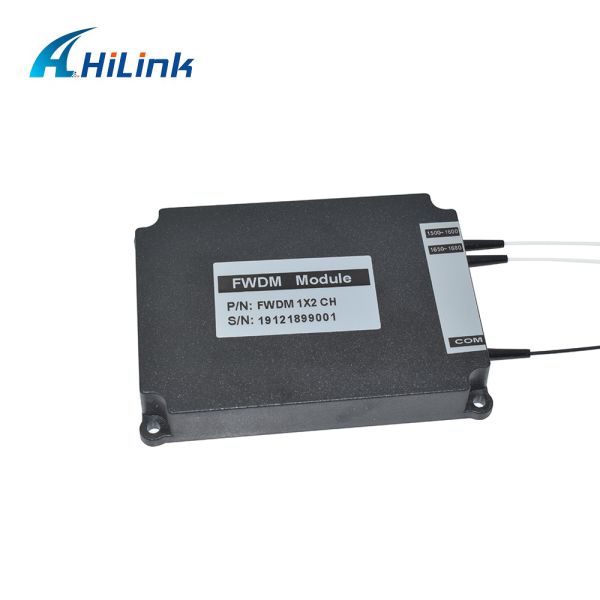

ABS Box WDM Fiber Optic 1x2 Channel SC/FC APC/UPC FWDM Module 2 Years Warranty

Name: ABS Box WDM Fiber Optic 1x2 Channel SCFC APCUPC FWDM Module 2 Years Warranty
Brand: HILINK
Price: 1 USD

Wholesale ABS Box WDM Fiber Optic 1x2 Channel SC/FC APC/UPC FWDM Module 2 Years Warranty from china suppliers

Brand Name : HILINK

Model Number : HL-FWDM

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiations

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs/month

Packaging Details : box & carton or customized package

Product Name : FWDM

Wavelength : 1310nm,1490nm,1550nm

Connector : LC/SC/FC/ST

Warranty : 2 years

Return Loss (dB) : >50

Feature : High Channel Isolation

Contact Now

ABS Box Fiber Optic 1x2 channel SC/FC APC/UPC FWDM WDM Module

Features

Wide Wavelength Range

Low Insertion Loss

WDM system

High Channel Isolation

High stability and reliability

Applications

System Monitoring

WDM system

Transmitters and Fiber

Fiber optical amplifier

Fiberoptic lnstruments

FWDM Parameter

Parameter		FWDM 4/35	FWDM 5/35	FWDM 35/5
Pass Band Wavelength Range (nm)		1480~1500	1540~1560	1260~1360 & 1480~1500
Reflection Band1 Wavelength Range (nm)		1260 ~ 1360	1260 ~ 1360	1540~1560
Reflection Band1 Wavelength Range (nm)		1540~1560	1480~1500
Insertion Loss (dB)	Reflect Channel	≤0.6
	Pass Channel	≤0.8
Pass Band Rippler(dB)		<0.3
Isolation (dB)	Reflect Channel	> 15
	Pass Channel	>30
Insertion Loss Temperature Sensitivity (dB/°C)		<0.005
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB)		>50
Return Loss (dB)		>50
Maximum Power Handling (mW)		500
Operating Temperature (°C)		-20 ~+70
Storage Temperature (°C)		-40 ~+85
Package Dimension (mm)		1. Φ5.5 x L34(for 900um Loose tube or bare fiber )) 2. L90xW20xH9.5(for 2.0 or 3.0mm Cable)

ABS Box WDM Fiber Optic 1x2 Channel SC/FC APC/UPC FWDM Module 2 Years Warranty

Product Tags:

fiber optic wdm

optical wdm
