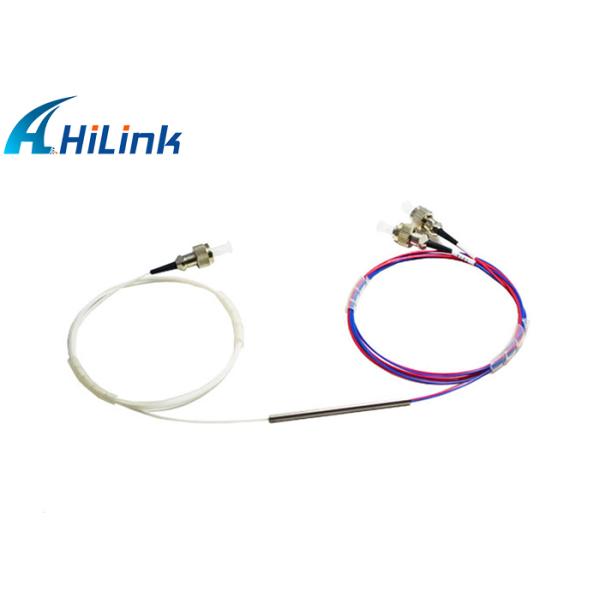

FTTH FBT Fiber Optic Splitters 1x2 Fiber Coupler 50/50 10/90 1310/1550nm Wavelength

Brand Name : HILINK

Model Number : HL-Coupler

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/week

Connector : LC/SC/FC/ST

Product name : HL-Coupler

Wavelength : 1310/1550nm

Endface : APC/UPC

Rate : 50/50 1/99 2/98 3/97 40/60 30/70 20/80 10/90

Contact Now

FTTH Splitter 1x2 Fiber Coupler 50/50 1/99 2/98 3/97 40/60 30/70 20/80 10/90 FTTH FBT


Desciption:

Fused Optical Coupler
Optical coupler is an optical device that combines or splits power from optical fibers.

Monolithic Fiber Coupler

Specifications:
Parameter
Type
1×4
4×4
Normal Size
Mini Size
Operating wavelength (nm)
1310 or 1550, others on request
Operating bandwidth (nm)
±15
Grade
P
A
P
A
P
A
Typical excess loss (dB)
0.15
0.25
0.15
0.25
0.2
0.25
Insertion loss (dB)
≤7.0
≤7.4
≤7.2
≤7.5
≤7.4
≤7.8
PDL (dB)
≤0.15
≤0.2
≤0.25
≤0.35
≤0.20
≤0.30
Uniformity (dB)
≤1.0
≤1.4
≤1.2
≤1.5
≤1.2
≤1.5
Directivity (dB)
≥55
Operating temperature (°C)
–40 ~ +85

Fiber optic splitters take an optical signal and supply two outputs. They can further be described as either Y-couplers or T-couplers.

  • Y-couplers have equal power distribution, meaning that the two output signal each receive half of the transmitted power.
  • T-couplers have an uneven power distribution. The signal outputs still carrier the same signal, however the power of one output is greater than the second output.

Dimensional schematic diagram:
FTTH FBT Fiber Optic Splitters 1x2 Fiber Coupler 50/50 10/90 1310/1550nm Wavelength


Real picture:

FTTH FBT Fiber Optic Splitters 1x2 Fiber Coupler 50/50 10/90 1310/1550nm Wavelength




Packaging & Shipping

Shipment

  • International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.

Packaging

  • We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required
  • Delivery time:1-5 working days
