MFSW-2x2B SM Optical Mechanical Switch 5V 1260-1650nm Singlemode Without Connector

Brand Name : HILINK

Model Number : HL-FSW1X2

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union,Paypal

Supply Ability : 1000PCS/month

Packaging Details : Plastic case,Carton

Product Name : Optical Switch 2x2

Type : Latching or Non-latching

Voltage : 3V/5V

Operating Wavelength : 850nm,1260-1650nm

Connector : LC/SC/FC/ST

Warranty : 2 years

Contact Now

MFSW-2x2B SM Optical Mechanical Switch 5V 1260-1650nm Singlemode without Connector

Optical Switch

Features

Low Insertion loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

Applications

Optical Network

Protection/Restoration

Optical Singnal Routing

Configurable Optical Add/Drop

Transmitter and receiver protection

Network Test System

Specification

Technical Paremeter

Parameters Unit FSW-D2×2B
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB Typ: 1.0 Max: 1.5
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB MM ≥ 35 SM ≥ 55
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
OperatingTemperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 14
Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.

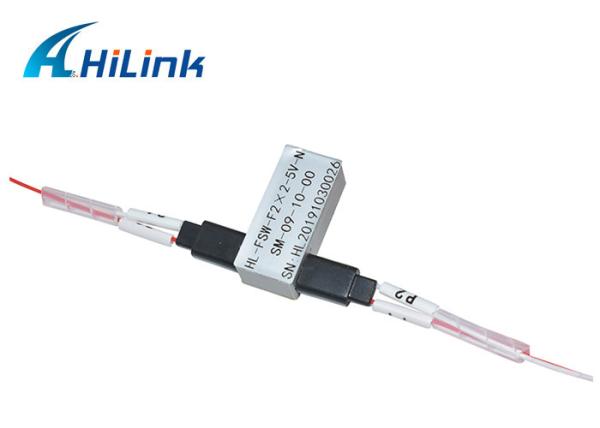

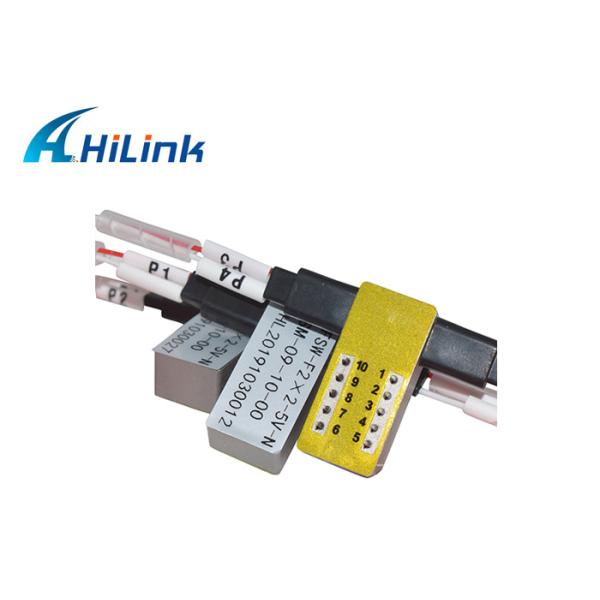

Product picture show

MFSW-2x2B SM Optical Mechanical Switch 5V 1260-1650nm Singlemode Without ConnectorMFSW-2x2B SM Optical Mechanical Switch 5V 1260-1650nm Singlemode Without Connector
