Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length

  • 1
  • 2
  • 3

Brand Name : HILINK

Model Number : HL-Fast Connector

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/week

Fiber : Single mode

Length : 5cm

Connector Type : SC/APC SC/UPC

Colour : Blue

Customerized : Yes

Contact Now

Optical fast connector blue color FTTH fiber optic SC APC UPC connector 5cm

Application


Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end-user access and maintenance.
Optical fiber access of mobile base station.


Product description


Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber
optic fast in products.

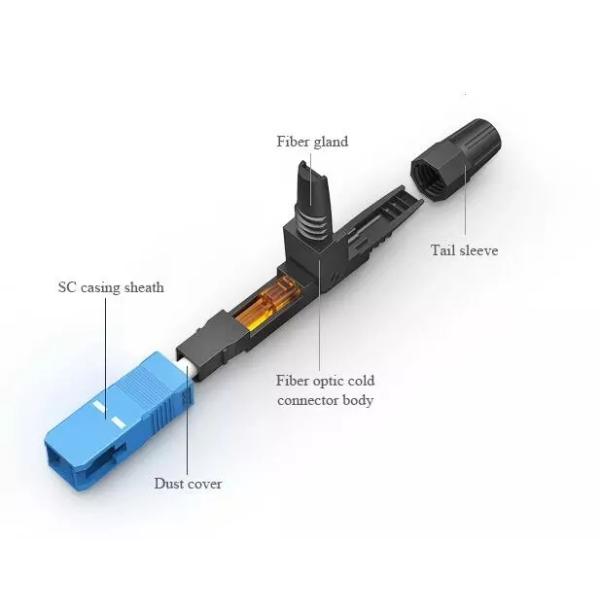

Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure.
Installed with high quality and high success rate and fast and other characteristics .

Testing Instruments

SPECIFICATIONS
Single mode Multimode
Insertion Loss ≤0.20dB ≤0.30dB
Return Loss PC ≥50 dB APC ≥60 dB
Durability ≤0.2 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C -40 to + 85°C

Ferrule Spec

125.0+1/-0μm, Concentricity: ≤1.0μm 125μm, Concentricity: ≤3μm
125.3+1/-0μm, Concentricity: ≤1.0μm 127μm, Concentricity: ≤3μm
125.5+1/-0μm, Concentricity: ≤1.0μm 128μm, Concentricity: ≤3μm
126.0+1/-0μm, Concentricity: ≤1.0μm

Shipment

  • International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.
Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length


products picture:
Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length
Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length

Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length


Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length

Company Information


As we have vairous kinds of products,if you can't find the correct item you need,plsease send us inquiry.We will follow up shortly.

Optical Fast Connector WDM Fiber Optic FTTH SC APC UPC Connector 5cm Length


FAQ


Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.

Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
