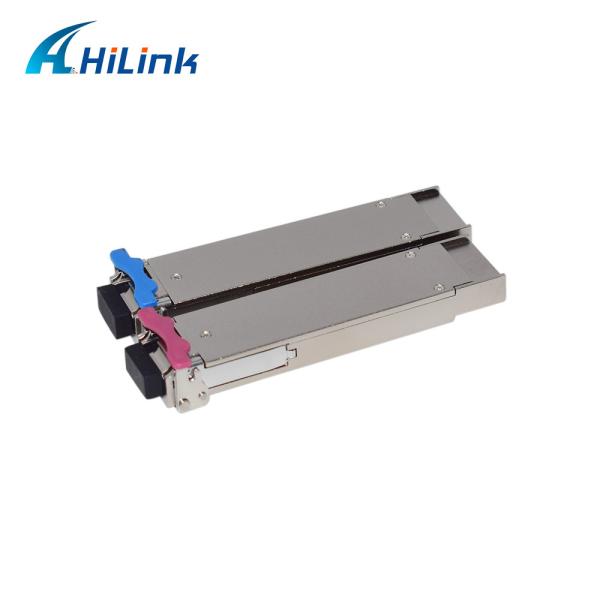

XFP 10G ER BIDI 1270nm 1330nm 40KM SMF XFP Optical Module DDM
Hilink’s HLXBxx1XL-CD40 transceivers are compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 40km on SMF .
The transceiver module comprises a transmitter with a 1270 or 1330nm DFB laser transmitter, an integrated 1330 or 1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 85 °C for industrial temperature, and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Features
-
Supports 9.95 to 11.3Gb/s bit rates
-
Simplex LC Connector
-
Hot-pluggable XFP footprint
-
Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
-
Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
-
Applicable for 40km SMF connection
-
Low power consumption, < 2.0 W
-
Digital Diagnostic Monitor Interface
-
XFP MSA package
-
Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Specifications
| Item No. | HL-XFP-BX-40 | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 11.3Gb/s |
| Wavelength | 1490/10nm | Max Cable Distance | 40KM |
| Interface | LC Simplex | Optical Components | DFB + PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter |
| Center Wavelength | λ | nm | 1260 | 1270 | 1280 | |
| | λ | nm | 1320 | 1330 | 1340 | |
| Average Output Power | Pave | dBm | 0 | | 5 | 1 |
| Extinction Ratio | ER | dB | 4 | 5 | | |
| Side Mode Suppression Ratio | SMSR | dB | 30 | | | |
| RMS spectral width | Δλ | nm | | | 0.45 | |
| Rise/Fall time (20%~80%) | Tr/Tf | ps | | | 45 | |
| Dispersion penalty | TDP | dB | | | 3.2 | |
| Relative Intensity Noise | RIN | dB/Hz | | | -130 | |
| Receiver |
| Center Wavelength | λC | nm | 1320 | 1330 | 1340 | |
| | λC | nm | 1260 | 1270 | 1280 | |
| Receiver Sensitivity | PSEN2 | dBm | | | -15 | 2 |
| Average Receive Power | Pave | dBm | | | 0.5 | |
| Receiver Reflectance | Rrx | dB | | | -12 | |
| LOS Assert | Pa | dBm | -30 | | | |
| LOS De-Assert | Pd | dBm | | | -16 | |
| LOS Hysteresis | Pd-Pa | dB | 0.5 | | | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
