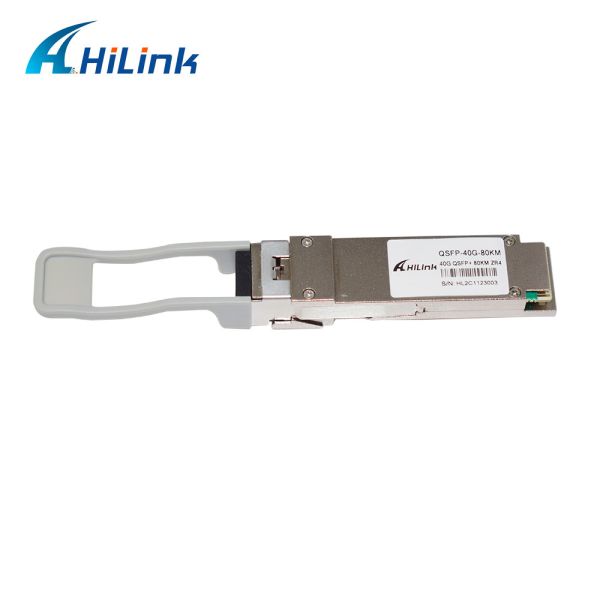

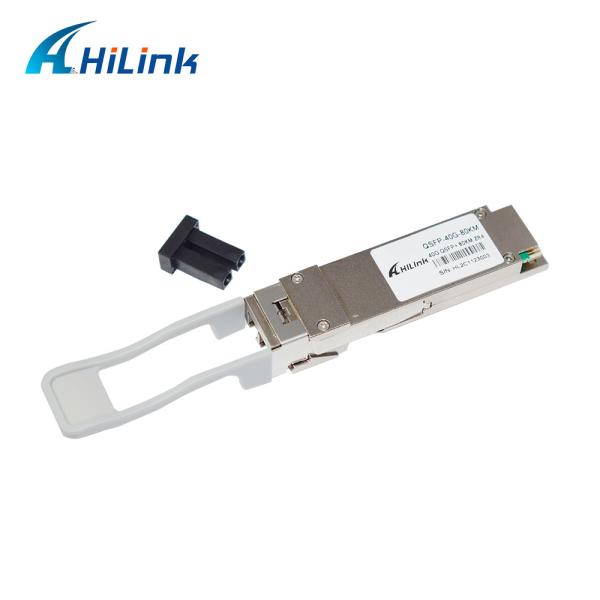

QSFP+ 40G LWDM ZR4 80KM Reach Dual LC Infiniband QDR Optical Transceiver
Hilink 40G QSFP+ ZR4 optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm LAN WDM center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a APD photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
| Item No. | HL-QSFP-ZR4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm | Max Cable Distance | 80KM |
| Interface | LC | Optical Components | DFBs + APD |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Features
-
4 LAN WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm
-
Single +3.3V power supply
-
QSFP+ MSA compliant
-
Up to 80km transmission
-
Operating case temperature: 0~70C
-
Maximum 3.5W operation power
-
RoHS compliant
-
Compliant with IEEE802.3ba
-
Compliant with QSFP+ MSA: SFF-8436
Specificatioins
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Data Rate per Channel | | - | 10.3125 | 11.2 | Gbps | |
| Power Consumption | | - | 2.5 | 5 | W | |
| Supply Current | Icc | | 0.75 | 1.3 | A | |
| Control I/O Voltage-High | VIH | 2.0 | | Vcc | V | |
| Control I/O Voltage-Low | VIL | 0 | | 0.7 | V | |
| Inter-Channel Skew | TSK | | | 150 | Ps | |
| RESETL Duration | | | 10 | | Us | |
| RESETL De-assert time | | | | 100 | ms | |
| Power On Time | | | | 100 | ms | |
| Transmitter |
| Single Ended Output Voltage Tolerance | | 0.3 | | 4 | V | 1 |
| Common mode Voltage Tolerance | | 15 | | | mV | |
| Transmit Input Diff Voltage | VI | 150 | | 1200 | mV | |
| Transmit Input Diff Impedance | ZIN | 85 | 100 | 115 | | |
| Data Dependent Input Jitter | DDJ | | 0.3 | | UI | |
| Receiver |
| Single Ended Output Voltage Tolerance | | 0.3 | | 4 | V | |
| Rx Output Diff Voltage | Vo | 370 | 600 | 950 | mV | |
| Rx Output Rise and Fall Voltage | Tr/Tf | | | 35 | ps | 1 |
| Total Jitter | TJ | | 0.3 | | UI | |
Note:
1. 20～80%
Applications
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
