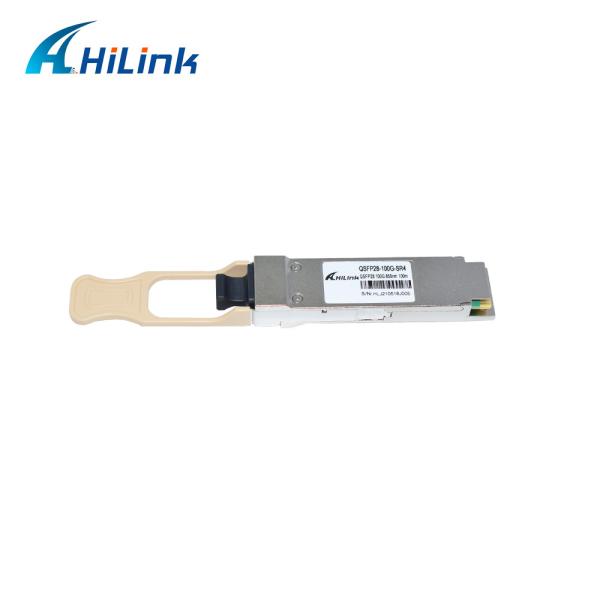

QSFP28 100G SR4 MMF 850nm 100M OM4 MPO Connector Optical Transceivers
Hilink 100G QSFP28 SR4 optical transceiver is up to 100m OM4 MMF Distance.
Item | Description |
| Transceiver form factor | QSFP28 |
| Transmission speed | 100GE |
| Center wavelength (nm) | 850 |
| Standards compliance | 100GBASE-SR4 |
| Connector type | MPO/PC (8-strand or 12-strand, type B, female connector) |
| Applicable cable and maximum transmission distance | Multimode fiber (OM4): 0.1 km |
| Transmit power (dBm) | -7.6 to +2.4 |
| Maximum receiver sensitivity(dBm) | -5.4 |
| Overload power (dBm) | 2.4 |
| Extinction ratio (dB) | 3.0 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
Features
-
MTP/MPO optical connector
-
Single +3.3V power supply
-
Hot-pluggable QSFP28 MSA form factor
-
Up to 100m OM4 MMF Distance
-
4x28G Electrical Serial Interface (CEI-28G-VSR)
-
AC coupling of CML signals
-
Low power dissipation(Max:3.5W)
-
Built in digital diagnostic function
-
Operating case temperature range:0℃ to 70℃
-
Compliant with 100GBASE-SR4
-
I2C Communication Interface
Applications
-
100GBASE-SR4
-
Infiniband QDR/DDR/SDR
-
100G Datacom connections
Compatibility
-
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products passed CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
