QSFP28 100G LR4 4 Channels LAN WDM SMF 20KM Dual LC Optical Transceiver
Hilink QSFP28 LR4 is a transceiver module designed for 20km optical communication applications. The design is compliant to 100GbASE-LR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard .The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm.To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
| Item No. | HL-QSFP28-LR4 | Vendor Name | Hilink |
| Form Type | QSFP28 | Max Data Rate | 100Gbps |
| Wavelength | 1296,1300,1305,1309 nm | Max Cable Distance | 20KM |
| Interface | LC Duplex | DOM Support | Yes |
| Cable Type | SMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
- 4 lanes MUX/DEMUX design
- Integrated LAN WDM TOSA / ROSA for up to 20 km reach over SMF
- Support 100GBASE-ER4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
- Aggregate bandwidth of > 100Gbps
- Duplex LC connectors
- Single +3.3V power supply operating
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
- RoHS Compliant Part
- Support FEC(Forward Error Correction)
Applications
- Local Area Network (LAN)
- Wide Area Network (WAN)
- Ethernet switches and router applications
Compatibility
-
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

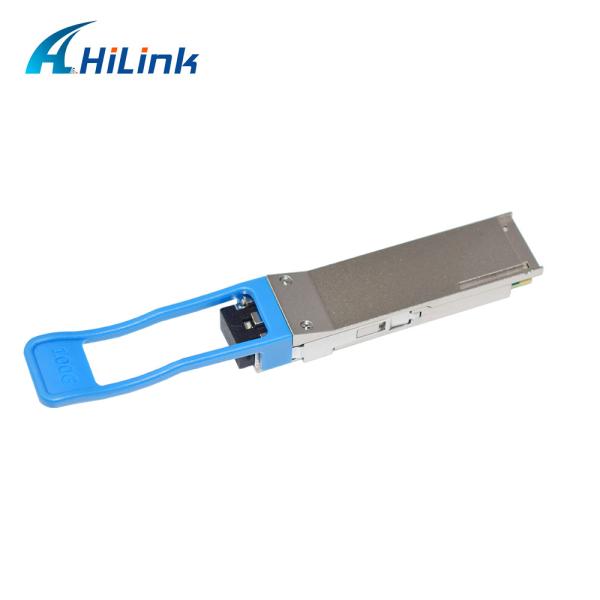

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
