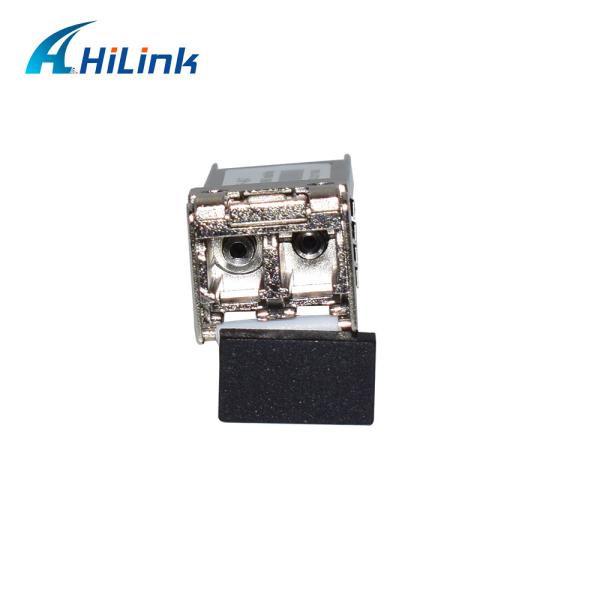

C-Band 50GHZ Tunable DWDM SFP+ 10GBASE Optical Module 80KM Transmission Transceiver
Hilink C-band Tunable SFP+ transceivers are designed for use in 1Gbps to 11.3Gbps multi-rate 50GHz/100GHz DWDM links up to 80km of G.652 single mode fiber.
Compatible with multiple network applications and transmission formats: CPRI, OTN, Fibre Channel, etc. Hot pluggable, and with narrow band tunability, it significantly reduces sparing and configuring costs in optical networks.
The module is optimised for Local Area Networks (LAN), Mobile Fronthaul and 10G Ethernet (10GbE), over single-mode fibre (SMF) optical links, P2P and passive networks. Optional G.Metro feature enables wavelength auto-tuning over Fibre. Digital Optical Monitoring interfaces are provided via the SFP+ standards compliant I2C interface.
Features
- Hot-pluggable SFP+ form factor
- Supports 9.95 to 11.3Gbps data rate
- 50GHz/100GHz ITU channel spacing (C-Band)
- Duplex LC connector
- Maximum link length of 80km
- C-band-tunable laser and high-performance APD photo-detector
- Single 3.3V power supply
- Power dissipation < 2.3W with CDR for Industrial temperature
- Built-in digital diagnostic functions
- RoHS 2.0 compliant (2011/65/EU, lead free)
- Case temperature range: Commercial 0~70℃ / Industrial -40~85℃ optional
Specifications & Parameters
| Item No. | DW-SFP10GX-80-T | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | DWDM CH17-CH61 | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | EML DWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -2~4dBm | Receiver Sensitivity | <-21dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Transmit Characteristics
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Optical Wavelength-End Of Life | λ | X-100 | X | X+100 | pm |
| Optical Wavelength-Beginning Of Life | λ | X-25 | X | X+25 | pm |
| Average Optical Power | Pavg | 0 | | +5 | dBm |
| Laser Off Power | Poff | | | -30 | dBm |
| Extinction Ratio | ER | 6 | | | dB |
| Transmitter Dispersion Penalty | TDP | | | 3.0 | dB |
| Relative Intensity Noise | Rin | | | -128 | dB/Hz |
| Optical Return Loss Tolerance | | 20 | | | dB |
Receive Characteristics
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Center Wavelength | λr | 1480 | | 1565 | nm |
| Receiver Sensitivity | Sen | | | -23 | dBm |
| Los Assert | LOSa | -40 | | - | dBm |
| Los Dessert | LOSd | | | -24 | dBm |
| Los Hysteresis | LOSh | 0.5 | | | dB |
| Overload | Sat | -7 | | | dBm |
| Receiver Reflectance | Rrx | | | -12 | dB |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
DWDM Solution Example
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
