QSFP+ 40G CSR4 400M Reach MMF 850nm Dual LC Ethernet Optical Transceivers
Hilink QSFP 40G CSR4 400M Optical Transceiver module supports 400M reach over multi mode fiber (MMF) OM4 via MPO/MTP connector.
| Item No. | HL-QSFP-CSR4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm | Max Cable Distance | 400M |
| Interface | MPO | Optical Components | VCSEL+PIN |
| Cable Type | MMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Features
Compliant to 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA
Supports up to 42Gbps (4×10.5Gbps)
Transmitter: VCSEL 850nm
Receiver: PIN
Up to 400m reach over OM4 MPO/MTP connector
Single +3 .3V power supply
Maximum power consumption 1.2W
Case operating temperature Commercial: 0 ~ +70°C
Applications
40GBASE-SR4
40G Ethernet Links
4*10G Ethernet Links
Data centers
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
Product Tags:
|
|

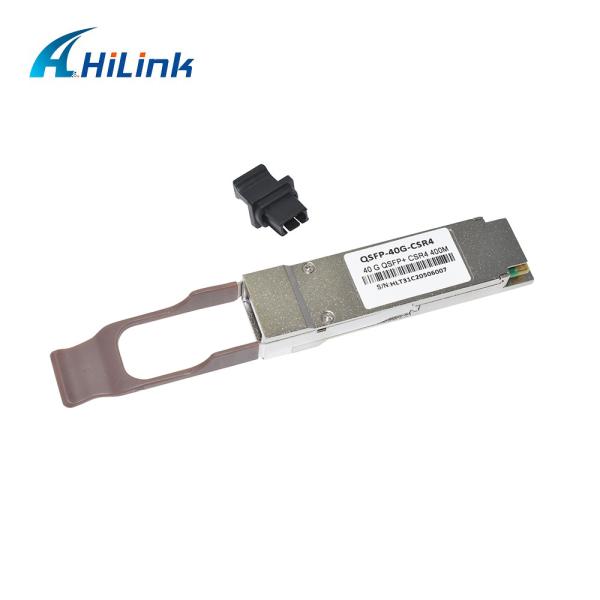

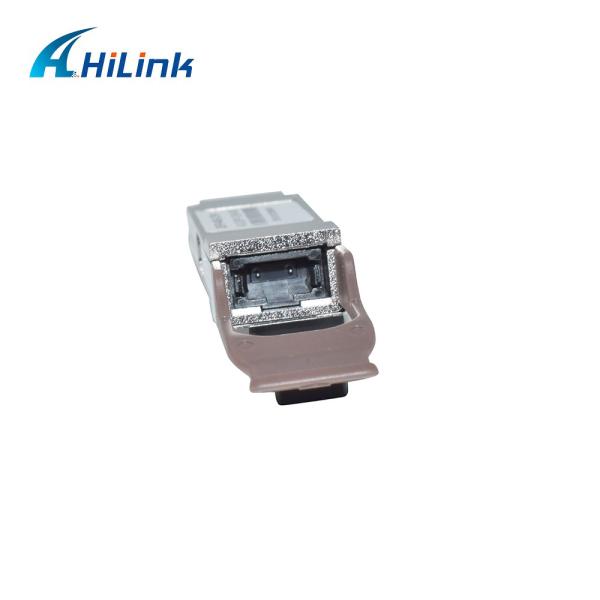

Dual LC Ethernet Optical Transceivers QSFP+ 40G CSR4 400M Reach MMF 850nm Images
|
