19" 1U Standard Rack 8CH DWDM Mux Demux CH21~CH28 LC UPC Connectors
Product Description
DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.
DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.
Features
* C Band
* 2-44 channels DWDM Mux/Demux (CH17-CH61)
* Channel spacing: 0.8nm(100GHz Grid)
* Com port is simplex
* Protocol transparent (10Mbps to 100Gbps)
* Low insertion loss
* Excellent channel isolation
* Epoxy-free optical path
* Compliant to G.657A1 standard
* ISO 9001 manufacturing facility
* Wide Operating Temperature: -20~+70℃
Applications
* Channel Add/Drop
* DWDM Network
* Wavelength Routing
* Fiber Optical Amplifier
* CATV System

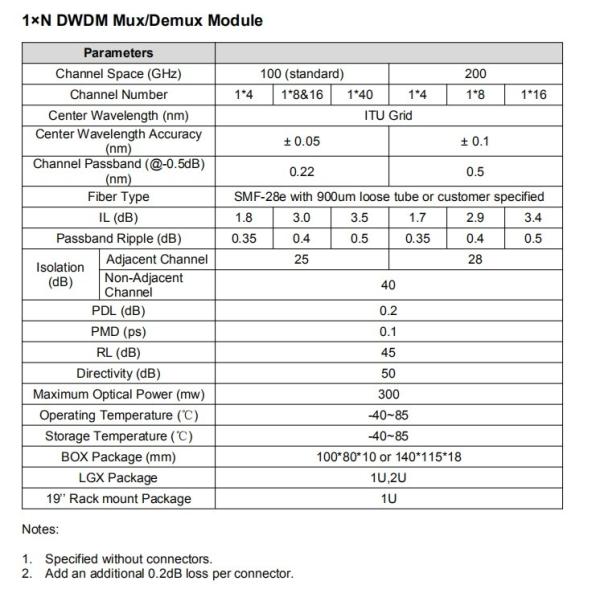

Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
