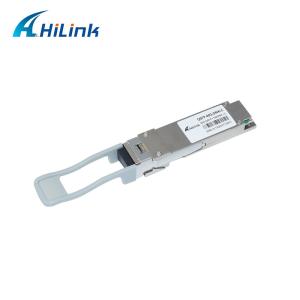

40G QSFP+ SWDM4 Shortwavelength 850~940nm 4Lanes Dual MMF LC Transceiver Module
Hilink 40G QSFP+ SWDM4 transceiver modules are designed for use intransceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.
| Item No. | HL-QSFP-40G-SWDM4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850~940nm | Max Cable Distance | 350M |
| Interface | LC Duplex | DOM Support | Yes |
| Cable Type | MMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
- Compliant with QSFP+ MSA
- Compliant with SWDM MSA
- Compliant with SFF-8636
- Compliant with IEEE 802.3ba
- Hot-pluggable QSFP+ form factor
- 4x10Gb/s VCSEL-based SWDM transmitter
- Supports 41.2Gbps aggregate bit rate
- Power dissipation<3.5W
- Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF
- Case temperature range of 0°C to 70°C
- Duplex LC receptacles
- XLPPI electrical interface
- RoHS compliant
Applications
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
