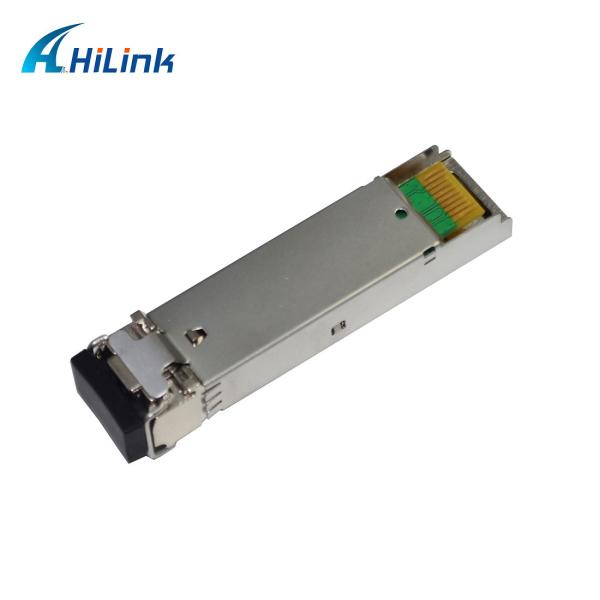

Cisco Compatible SFP 1.25G SMF 1550nm 80KM DDM Optical Transceivers
Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Hilink 1.25G 1550nm ZX SFP transceiver is designed to transmit and receive optical data over Single mode optical fiber for link length 80km.
| Item No. | SFP-GE-ZX | Vendor Name | Hilink |
| Form Type | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | DFB |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~+5 dBm | Receiver Sensitivity | <-25dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
-
Up to 1.25Gb/s dual data links
-
Hot-pluggable SFP footprint
-
1550nm DFB laser transmitter
-
Duplex LC connector
-
Up to 80km on 9/125µm SMF
-
Metal enclosure for lower EMI
-
Single +3.3V power supply
-
Low power dissipation <700mW
-
Commercial operating temperature range: 0 to +70℃
-
Industrial operating temperature range: -40°C to +85°C
Applications
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
Product Tags:
|
|
1.25G SFP Optical Transceiver Module SMF 1550nm 80KM DDM Cisco Compatible Images
|
