QSFP-DD-DR4 8x50G 400GBASE 400G 1310nm 500M MPO-12 Connector SMF SFP
GENERAL
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP DD) optical module designed for 500m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
PRODUCT FEATURES
QSFP-DD MSA compliant
4 parallel lanes
Up to 500m transmission on single mode fiber(SMF) with FEC
Operating case temperature: 0 to 70℃
8x53.125Gb/s electrical interface (400GAUI-8)
Data Rate 106.25Gbps (PAM4) per channel.
Maximum power consumption 12W
MPO-12 connector
APPLICATIONS
400GBASE-SR8 Ethernet Links
Telecom networking
Data centers Interconnect
Enterprise networking
RELATED PRODUCT
| QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100M LC |
| QSFP28-100G-LR4 | 100GBASE-LR4 1310nm 10KM LC |
| QSFP28-100G-ER4 | 100GBASE-ER 1310nm 40KM LC |
| QSFP28-100G-ZR4 | 100GBASE-ZR 1310nm 80KM LC |
| QSFP56-200G-SR4 | 200GBASE-SR4 850nm 100M MPO |
| QSFP56-200G-FR4 | 200GBASE-DR4 1310nm 2KM MPO |
| QSFPDD-400G-SR8 | 400GBASE-SR8 850nm 100M MPO |
| QSFPDD-400G-DR4 | 400GBASE-DR4 1310nm 500M MPO |
PRODUCT PICTURE SHOW
MECHANICAL DRAWINGS

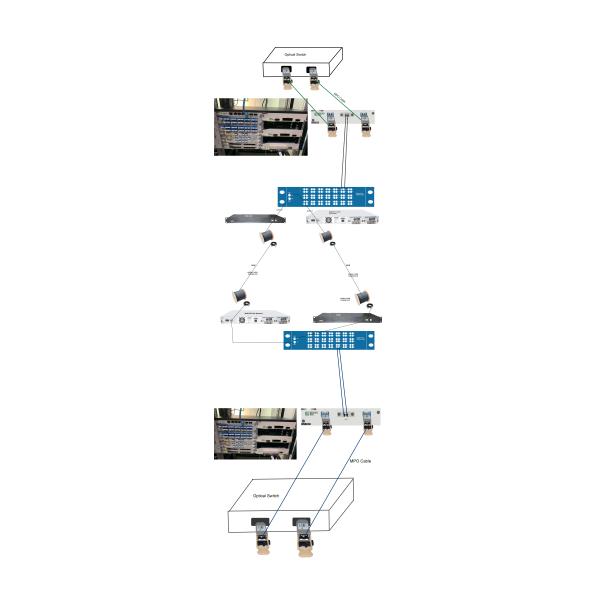

APPLICATION
