40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM

Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM

Brand Name : HILINK

Model Number : HL-QSFP-40G-SW4LC

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union.Paypal

Supply Ability : 100/PCS/MONTH

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Type : 40GBASE QSFP 850nm

Distance : OM3 240M, OM4 350M

Wavelength : 850nm

Connector : Duplex LC

Product name : QSFP Transceiver

Fiber type : 40G SR4 QSFP+ Optical Transceiver

Contact Now

New Arrival QSFP 40G QSFP+ Module SWDM4 850nm OM3 OM4 DOM DDM

PRODUCT DESCRIPTIONS

The 40G QSFP+ SWDM4 transceiver modules are designed for use in transceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.

PRODUCT FEATURES

Compliant with QSFP+ MSA

Compliant with SWDM MSA

Compliant with SFF-8636

Compliant with IEEE 802.3ba

Hot-pluggable QSFP+ form factor

4x10Gb/s VCSEL-based SWDM transmitter

Supports 41.2Gbps aggregate bit rate

Power dissipation<3.5W

Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF

Case temperature range of 0°C to 70°C

Duplex LC receptacles

XLPPI electrical interface

RoHS compliant

APPLICATIONS

40G Ethernet over Duplex MMF

Datacom/Telecom switch & router connections

Data aggregation and backplane applications

Proprietary protocol and density applications

QSFP SERIES

Part Number Product Description
HL-QSFP-40G-SR4 QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4 QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

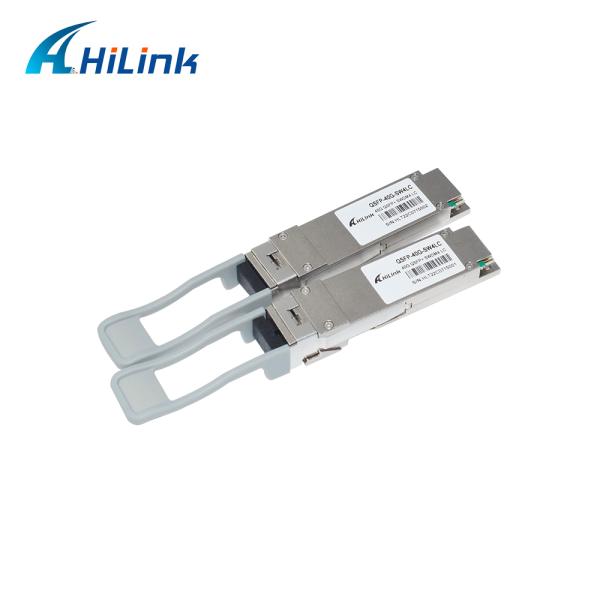

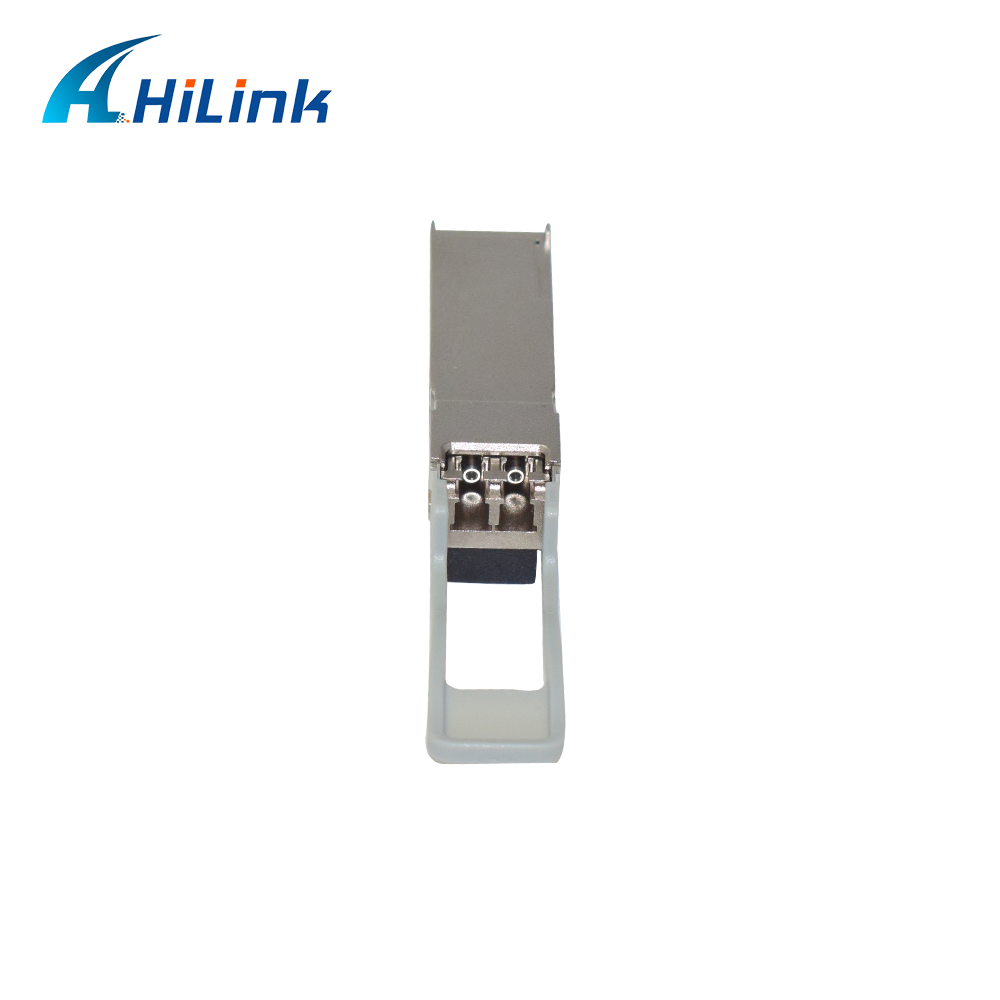

PRODUCT PICTURE SHOW

40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM40G QSFP+ Transceiver Module SWDM4 850nm OM3 DOM DDM
