High Speed 100G Optical Transceiver Module QSFP28 SWDM4 LC Connector Telecom Equipment

Name: High Speed 100G Optical Transceiver Module QSFP28 SWDM4 LC Connector Telecom Equipment
Brand: Hilink
Price: 1 USD

Wholesale High Speed 100G Optical Transceiver Module QSFP28 SWDM4 LC Connector Telecom Equipment from china suppliers

Brand Name : Hilink

Model Number : 100G QSFP28 SWDM4

Certification : CE Rohs

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : Need to negotiate

Payment Terms : T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance

Supply Ability : 2000 Pieces/Week

Delivery Time : 5-8 working day

Packaging Details : Plastic box+Carton

Condition : Brand new

Wavelength : 850NM

Data transfer rate : 100Gbps

Warranty : 3 years

CE RoHS : Compliant

Lead time : 2-4 working days

package style : Plastic box+Carton

Connector : LC

Contact Now

New Product High Speed 100G QSFP28 SWDM4 LC Connector New Product Telecom Equipment

Product Description

The 100G QSFP28 SWDM4 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 25.78Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

Features

Compliant with QSFP28 MSA

Compliant with SWDM MSA

Compliant with IEEE802.3bm CAUI-4

Hot-pluggable QSFP28 form factor

4x25Gb/s 850mm VCSEL-based transmitter

Supports 103.1Gbps aggregate bit rate

Power dissipation<3.5W

Maximum link length of 150m on OM5 multimode Fiber

Case temperature range of 0°C to 70°C

Duplex LC receptacles

CAUI-4 electrical interface

RoHS compliant

Applications

100G Ethernet over Duplex MMF

Optical Characteristics

Signaling rate, each lane		25.78125±100ppm		Gb/s
Lane Wavelength Range	Lane0 Lane1 Lane2 Lane3	844 874 904 934	858 888 918 948	nm
Modulation Format		NRZ
Difference in launch power between any two lanes			4.5	dBm
RMS Spectral width			0.59	nm	1
Optical Modulation Amplitude (OMA), each lane		-5.5	3	dBm	2
Average Launch Power per Lane @ TX Off State			-30	dBm
Launch Power in OMA minus TDEC	Lane0 Lane1 Lane2 Lane3	-7 -7 -7.4 -7.7		dBm
Transmitter and Dispersion Eye Closure	Lane0 Lane1 Lane2 Lane3		4 4 4.4 4.8	dB	3
Extinction Ratio		2		dB
Optical Return Loss Tolerance			12	dB
Encircled Flux		≥86% at 19 um ≤30% at 4.5 um			4
Transmitter eye mask definition {X1, X2, X3, Y1, Y2 Y3} Hit ratio 1.5x10-3 hits per sample		{0.3,0.38,0.45,0.35,0.41,0.5}
Notes: 1. RMS spectral width is the standard deviation of the spectrum. 2. The normative lowest value of OMA for a compliant transmitter is ‘Launch power in OMA minus TDEC, each lane (min)’ plus the actual value of ‘TDEC’, but with a value of at least ‘OMA, each lane (min)’. 3. TDEC is calculated from the measured TDECm using the methods in 3.6. TDECm is measured following the method in IEEE 802.3 clause 95.8.5 using a 12.6 GHz bandwidth reference receiver for all lanes. 4. If measured into type A1a.2 or type A1a.3 50 um fiber in accordance with IEC 61280-1-4.

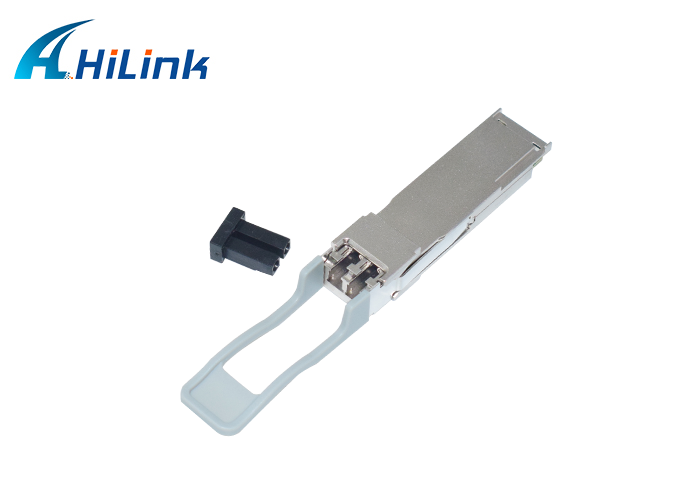

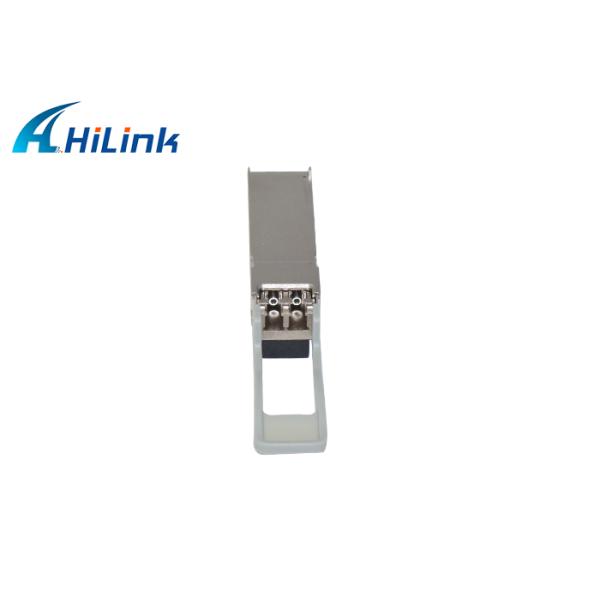

Real Picture

High Speed 100G Optical Transceiver Module QSFP28 SWDM4 LC Connector Telecom Equipment

Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton

Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
