100GBASE QSFP28 100G ER4 ZR4 60KM 1310nm SMF SFP Module DOM LC
DESCRIPTIONS
HL-QSFP28-ZR4-60 is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1.
PRODUCT FEATURES
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 80km transmission on single mode fiber
Operating case temperature: 0℃ to 70℃
Single 3.3V power supply
RoHS 2.0 compliant
APPLICATIONS
100GBASE-ZR4 100G Ethernet
Telecom networking
RELATED PRODUCT
| QSFP28-100G-SR4 | 100GBASE-SR4 850nm 100M LC |
| QSFP28-100G-LR4 | 100GBASE-LR4 1310nm 10KM LC |
| QSFP28-100G-ER4 | 100GBASE-ER 1310nm 40KM LC |
| QSFP28-100G-ZR4 | 100GBASE-ER 1310nm 60KM LC |
| QSFP28-100G-ZR4 | 100GBASE-ZR 1310nm 80KM LC |

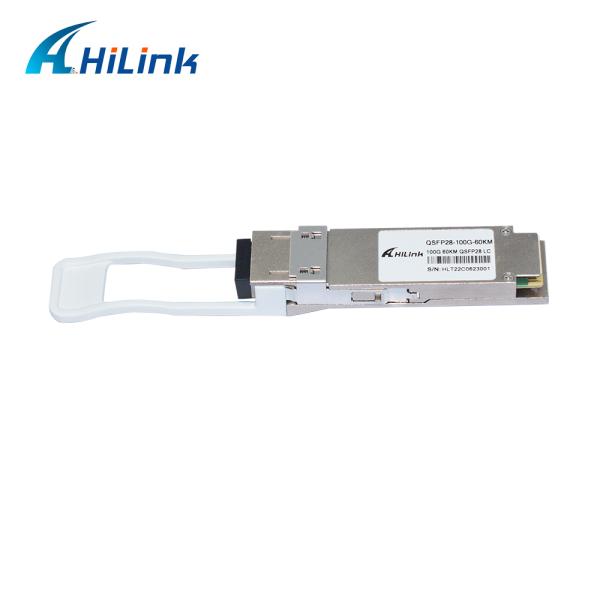

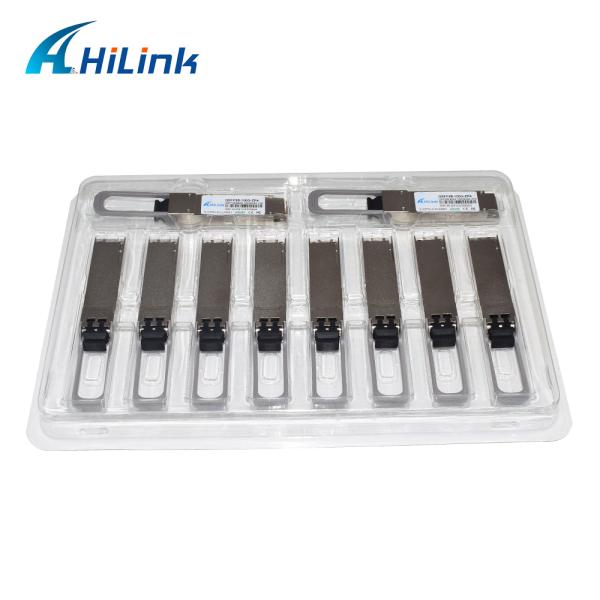

PRODUCT PICTURE SHOW
