DDM Duplex LC SFP+ Optical Transceiver 100GHZ 10G DWDM 80KM For Data Center

100GHZ 10G DWDM 80KM CH17-61 DDM LC Duplex SFP+ Optical Transceiver for Data Center

Hilink 10G DWDM SFP+ ZR optical transceivers are designed for use in 10-Gigabit Ethernet links up to 80km over Single Mode fiber.

Features

• Supports 9.95 to 11.3 Gb/s bit rates

• Duplex LC connector

• Hot pluggable SFP+ footprint

• Cooled EML transmitter and APD receiver

• Applicable for 80km SMF connection

• Low power consumption, < 1.5W

• 100 GHz channel spacing

• Digital Diagnostic Monitor Interface

• Optical interface compliant to ITU-T 694.1& G.698.1

• Electrical interface compliant to SFF-8431& SFF-8432

• Operating case temperature: Commerical:0 to 70 °C

  Industrial:-5 to 80 °C

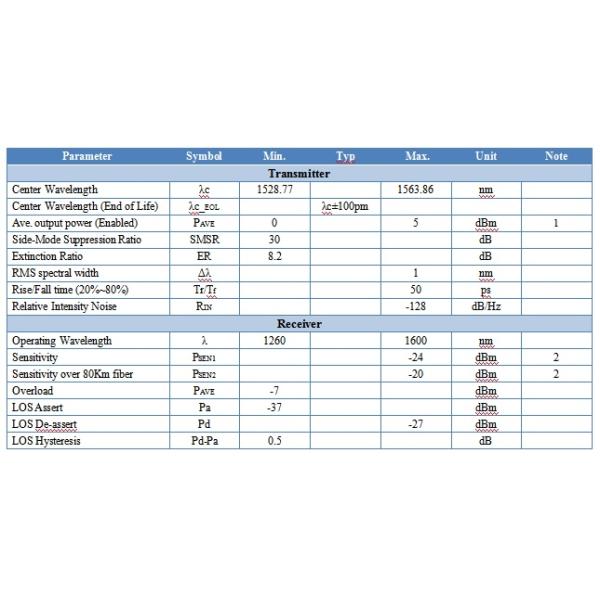

Specifications & Parameters

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications

• 10G Ethernet
• 2x,4x, 8x Fiber Channel
• ITU-T G.698.1
• Other

DWDM Solution Example

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products passed CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

DDM Duplex LC SFP+ Optical Transceiver

10G DWDM SFP+ Optical Transceiver

Data Center SFP+ Transceiver Module

DDM Duplex LC SFP+ Optical Transceiver 100GHZ 10G DWDM 80KM For Data Center Images
