OEM CH21 1560.61nm SFP+ Transceiver Module DDM Duplex LC 10G DWDM 40KM

OEM 10G DWDM 40KM CH21 1560.61nm SFP+ Transceiver Module DDM LC Duplex

Hilink 10G DWDM SFP+ ER optical transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber.

Features

• Supports 9.95 to 11.3 Gb/s bit rates

• Duplex LC connector

• Hot pluggable SFP+ footprint

• Cooled EML transmitter and PIN-TIA receiver

• Applicable for 40km SMF connection

• Low power consumption, < 1.2W

• 100 GHz channel spacing

• Digital Diagnostic Monitor Interface

• Optical interface compliant to ITU-T 694.1& G.698.1

• Electrical interface compliant to SFF-8431& SFF-8432

• Operating case temperature: Commerical:0 to 70 °C

  Industrial:-5 to 80 °C

Specifications & Parameters

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications

• 10G Ethernet
• 2x,4x, 8x Fiber Channel
• ITU-T G.698.1
• Other

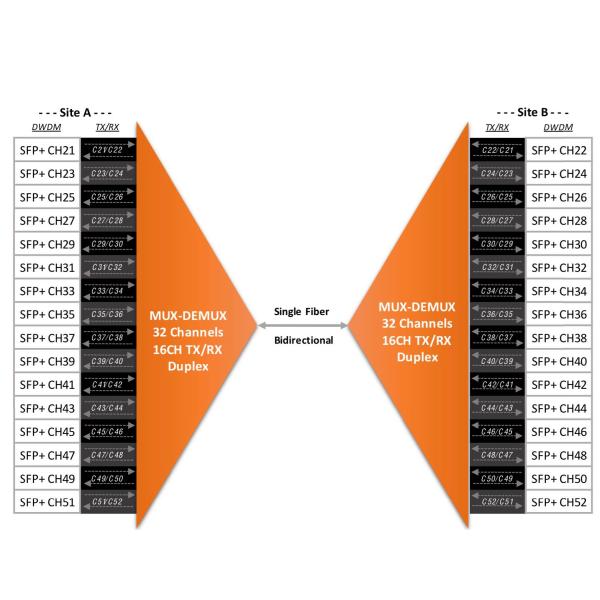

DWDM Solution Example

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

CH21 1560.61nm SFP+ Transceiver Module

10G DWDM SFP+ Transceiver Module

40KM 10G SFP+ DWDM

OEM CH21 1560.61nm SFP+ Transceiver Module DDM Duplex LC 10G DWDM 40KM Images
