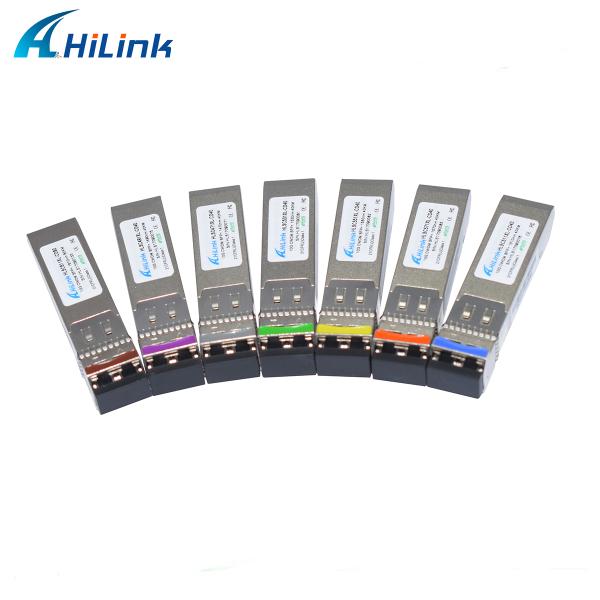

10G CWDM 1470nm~1610nm 40KM Duplex LC Transceiver Pluggable DDM SFP+ ER
Hilink HLSCxx1XL-CD40 CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km.
Full channels as CWDM for
1270nm 1290nm 1310nm 1330nm 1350nm 1370nm 1390nm 1410nm 1430nm 1450nm
1470nm 1490nm 1510nm 1530nm 1550nm 1570nm 1590nm 1610nm
Features
- Hot-pluggable SFP+ footprint
-
Supports 9.95 to 11.3Gb/s bit rates
-
Duplex LC connector
-
Cooled 1470nm~1610nm EML transmitter, PIN photo-detector
-
Applicable for 40km SMF connection
-
Low power consumption, < 1.2W
-
Digital Diagnostic Monitor Interface
-
Optical interface compliant to IEEE 802.3ae 10GBASE-ER
-
Electrical interface compliant to SFF-8431
-
Operating case temperature: Commerical:0 to 70 °C
- RoHS-6 compliant (lead-free)
| Item No. | CWDM-SFP10x-40 | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | CWDM | Max Cable Distance | 40KM |
| Interface | LC duplex | Optical Components | EML CWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -1~4dBm | Receiver Sensitivity | <-17dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Applications
- 10GBASE-ER at 10.3125Gbps
- 10G Ethernet
- Other optical links
Warranty
We promise all the advertised optical transceivers are brand new with new components and parts.
We absolutely never use old and refurbished materials.
All the optical transceivers have been through functional test and aging test.
We provide 3 years warranty for all the optical transceivers from the date of shipment.
Shipment
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive price updating
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of by FedEx, DHL, UPS, TNT and EMS.
Some items in stock can be shipped out the same day . The Items with no stock, then the shipment would be done in 3-7 days.
DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.
For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
