1X8 Steel Tube Package Type Optical PLC Splitter SC/APC Fiber Optic Splitter

Name: 1X8 Steel Tube Package Type Optical PLC Splitter SCAPC Fiber Optic Splitter
Brand: HILINK
Price: 1 USD

Wholesale 1X8 Steel Tube Package Type Optical PLC Splitter SC/APC Fiber Optic Splitter from china suppliers

Brand Name : HILINK

Model Number : HL-PLC-108-SA

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1pc

Price : USD

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10000pcs/month

Packaging Details : plastic tray, carton box

Type : FTTx Solutions

Package : Mini Steel Tube

Fiber Mode : Single Mode

Wavelength : 1260-1650nm

Fiber OD : 0.9mm

Cable Length : 1M (customized)

Contact Now

PLC Splitter 1*2/4/8/16/32/64 ABS/Steel Tube Package Type

Product Description

Planar Lightwave Circuit Splitter (PLC Splitters) is a technology based on planar waveguide optical power distribution products,with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics. Especially for passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and optical signal splitter to achieve. All products comply with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD / T 1117-2001 and RoHS standards.

1xN and technology can provide a full range of full specification 2xN products, and customized for all occasions in the optical splitter.

Parameters	1X2	1X4	1X8	1X 16	1X32	1X 64	1X128
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB) (P/SGrade )	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss (dB) ( P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85 C)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (C)	-40~85
Device Dimension (mm)	40x4x4	40x4x4	40x4x4	50x4x4	50x7x4	60x12x4	N/A
Module Dimension (mm)	100x80x10	100x80x10	100x80x10	120x80x18	140x115x18	140x115x18	140x115x18
Mini-Module Dimension (mm)	50x7x4	50x7x4	50x7x4	60x12x4	80x20x6	100x40x6	N/A

Features

* Ultra-end insertion loss and associated loss of polarization
* Good spectral uniformity
 * wide wavelength bandwidth,
 * a wide range of working environment
 * High reliability
 * Small Size

Applications

* FTTx

* Passive Optical Network (PON)
* Cable TV Network (CATV)
* Other optical signal splitter system

Details Images

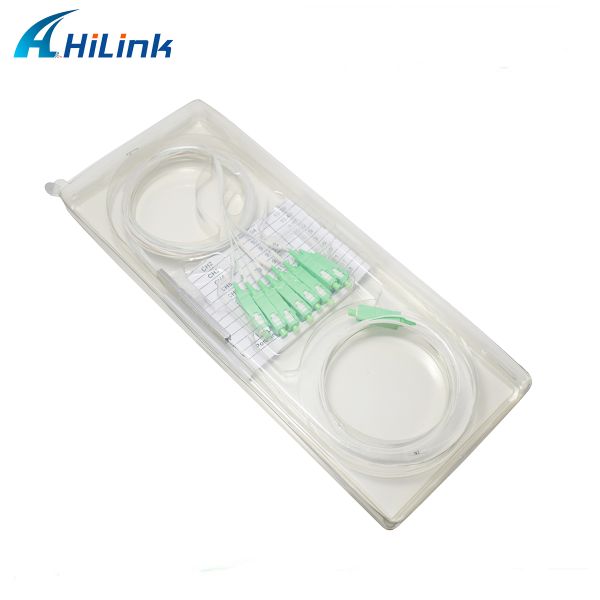

1X8 Steel Tube Package Type Optical PLC Splitter SC/APC Fiber Optic Splitter

FAQ

1. Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ.  Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your payment term?

T/T, Western Union or Paypal.

5. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.

6. Could I use our own logo and label?

OEM service is provided.
