1000BASE-T SFP to 100 Meters CAT5 RJ45 Copper SFP Transceivers

Hilink Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals

Hilink 1000BASE-T SFP is designed for Gigabit Ethernet 1000BASE-T links over Cat5 copper cable.The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address.

Features

• Hot-pluggable SFP form factor

• Compliant with SFP MSA standard

• Compliant with IEEE 802.3ab standard

• Supports 1000Mb/s data rate

• TX Disable and RX Los/without Los function

• 1000BASE-T operation in host systems with SerDes interface

• Compact RJ-45 connector assembly

• Access to physical layer IC via 2-wire serial bus

• Single 3.3V power supply

• RoHS-6 compliant (lead free)

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

RoHS-6 compliant Copper SFP Transceivers

1000BASE-T SFP Optical Transceiver Module

3.3V SFP Optical Transceiver Module

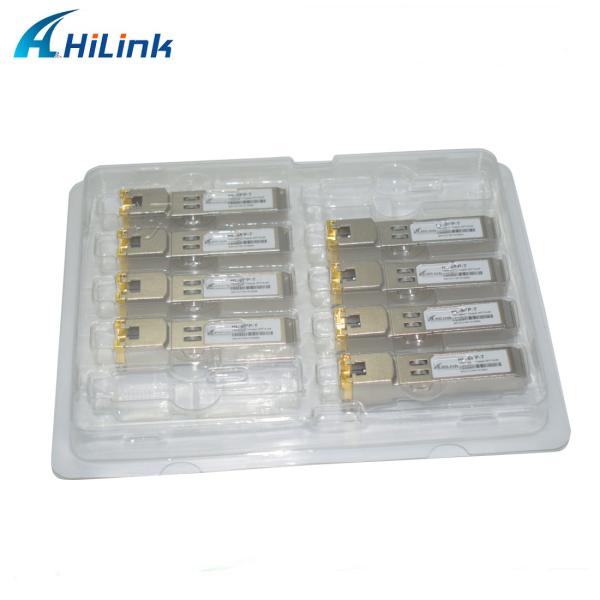

1000BASE-T SFP To 100 Meters CAT5 RJ45 Copper SFP Transceivers Images
