1U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC
General
DWDM MUX/DEMUX reduce the cost of network Construction. With low-cost and compact dimension, it is mainly used in metropolitan area network and access layer, also be used to build networks.
Features
Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability
High Channel Isolation
Low Insertion Loss
Optical Path Epoxy Free
Telcordia 1221 Compliant
Ultra Low TDL
Wide Operating Temperature: -40~+85℃
Applications
Dense WDM System
PON Networks
CATV Links
Performance Specifications
1×N DWDM Mux/Demux Module
| Parameters | |
| Channel Space (GHz) | 100 | 200 |
| Channel Number | 1*4 | 1*8 | 1*16 | 1*4 | 1*8 | 1*16 |
| Center Wavelength (nm) | ITU Grid |
| Center Wavelength Accuracy (nm) | ± 0.05 | ± 0.1 |
| Channel Passband (@-0.5dB) (nm) | 0.22 | 0.5 |
| Fiber Type | SMF-28e with 900um loose tube or customer specified |
| IL (dB) | 1.8 | 2.3 | 3.0 | 1.7 | 2.9 | 3.1 |
| Passband Ripple (dB) | 0.35 | 0.4 | 0.5 | 0.35 | 0.4 | 0.5 |
| Isolation (dB) | Adjacent Channel | 25 | 28 |
| Non-Adjacent Channel | 40 |
| PDL (dB) | 0.2 |
| PMD (ps) | 0.1 |
| RL (dB) | 45 |
| Directivity (dB) | 50 |
| Maximum Optical Power (mw) | 500 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
| BOX Package (mm) | 100*80*10 or 140*115*18 |
| LGX Package | 1U,2U |
| 19’’ Rack mount Package | 1U |
above specification are for device without connector.
Order details
2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.
Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
DWDM Mux/Demux Solution
DWDM Mux/demux with EDFA

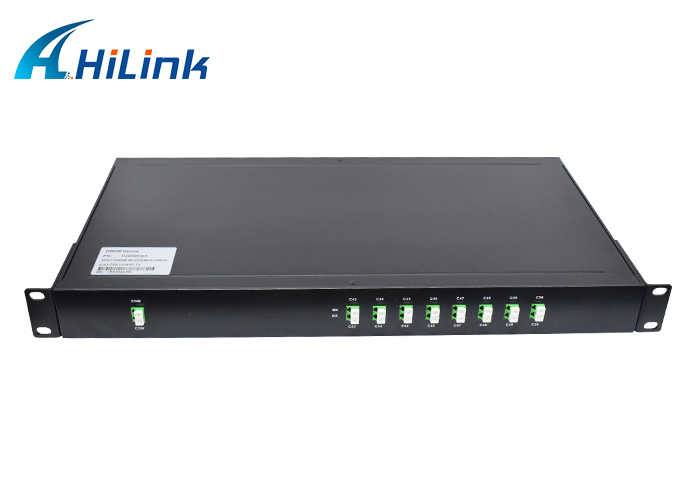

Product picture show
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
