Fiber Optical 10G 1550nm 120km SFP+ Transceiver Module Duplex LC DOM
Features:
0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)
Supports 9.95 to 11.3Gb/s bit rates
Duplex LC connector
1550nm cooled CML transmitter, APD photo-detector
SMF links up to 120km
Power Supply :+3.3V
Power consumption<1.8W
Temperature Range: 0~ 70°C
Application:
10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH
10G Fibre channel

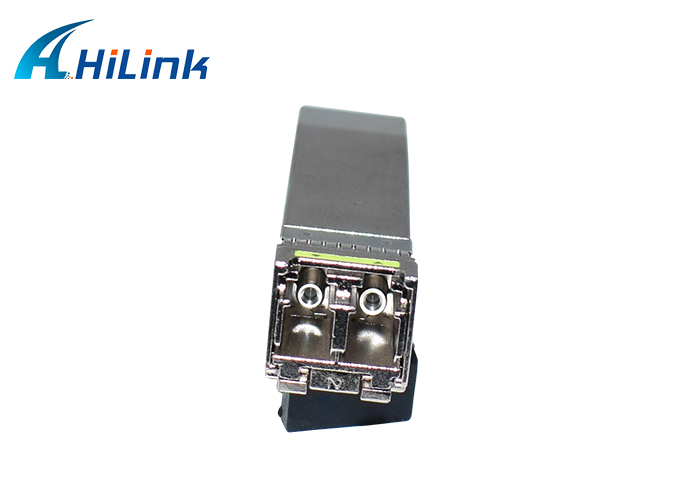

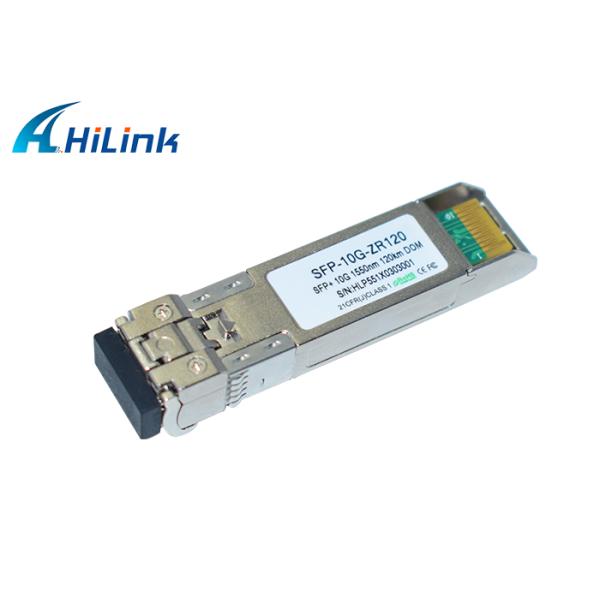

Product Show:
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: |
| Center Wavelength | λt | 1530 | 1550 | 1565 | nm | |
| spectral width | △λ | | | 0.3 | nm | |
| Average Optical Power | Pavg | 0 | | +5 | dBm | 1 |
| Optical Power OMA | Poma | -2.1 | | | dBm | |
| Laser Off Power | Poff | | | -30 | dBm | |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Transmitter Dispersion Penalty | TDP | | | 3.0 | dB | 2 |
| Relative Intensity Noise | Rin | | | -128 | dB/Hz | 3 |
| Optical Return Loss Tolerance | | 21 | | | dB | |
| Receiver Section: |
| Center Wavelength | λr | 1260 | | 1600 | nm | |
| Receiver Sensitivity | Sen | | | -24 | dBm | 4 |
| Los Assert | LOSA | -34 | | - | dBm | |
| Los Dessert | LOSD | | | -24 | dBm | |
| Los Hysteresis | LOSH | 0.5 | | | dB | |
| Overload | Sat | -7 | | | dBm | 5 |
| Receiver Reflectance | Rrx | | | -26 | dB | |
Mechanical Dimensions
