CWDM MUX 18 Channels CWDM System 1U Racks SC FC LC APC UPC PC
Features:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
18 Channels
Mounted in 191 u Racks or ABS box optional
Wide Operating Wavelength:
From 1260nm to 1620nm
Applications:
CWDM System
WDM Network
Specifications:
| Parameter | 4 Channel | 8 Channel | 18 Channel |
| Mux | Demux | Mux | Demux | Mux | Demux |
| Channel Wavelength (nm) | 1270~1610 |
| Center wavelength Accuracy (nm) | ±0.5 |
| Channel Spacing (nm) | 20 |
| Channel Passband (@-0.5dB bandwidth (nm) | >13 |
| Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.0 |
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 |
| Channel Ripple (dB) | 0.3 |
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 |
| Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 |
| Wavelength Temperature Shifting (nm/°C) | <0.002 |
| Polarization Dependent Loss (dB) | <0.1 |
| Polarization Mode Dispersion | <0.1 |
| Directivity (dB) | >50 |
| Return Loss (dB) | >45 |
| Maximum Power Handling (mW) | 300 |
| Opterating Temperature (°C) | -5~+75 |
| Storage Temperature (°C) | -40~85 |
| Package dimension (mm) | L100 x W80 x H10 or L140xW100xH15 |

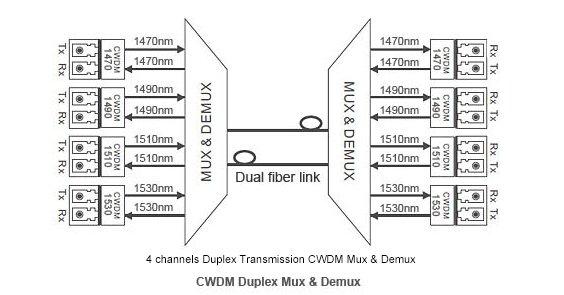

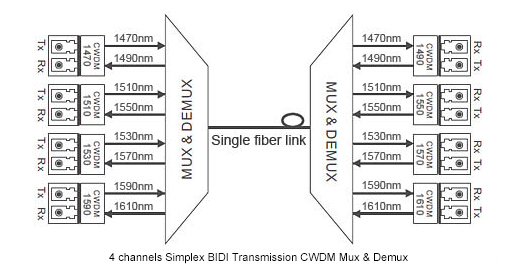

CWDM MUX/DWDM MUX Solution:
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.
Product picture show
Company Information:
FAQ:
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use secont-hand components.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
Enclosure type: Plastic ABS Box or Rack Mounted
