10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support

Product Categories
Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support

Brand Name : Hilink

Model Number : HL-XENPAK-10G-SR

Certification : CE RoHs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000PCS/MONTH

Delivery Time : 5-8 Working days

Packaging Details : Normal package or OEM.

Product name : 10GBASE-SR XENPAK

Max Data Rate : 10Gbps

Wavelength : 850nm

Max Cable Distance : 300m

Warranty : 3 years

CE RoHS : Compliant

Lead time : 3-7 working days

DOM Support : Yes

Contact Now

10GBASE-SR XENPAK 850nm 300m DOM SC MMF Transceiver Module

Product Description

Product Features

Compatible with XENPAK MSA Rev.3.0

Support of IEEE802.3ae up to 300m (OM3 MMF)

Power Consumption 1.8W (typ.)

Temperature Range 0 to 70°

Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)

Adaptable Power Supply (APS:+1.2V)

SC duplex connector

Hot pluggable 70-pin connector with XAUI electrical interface

Management and control via MDIO 2-wire interface

Compatible with RoHS

Applications

10GBASE SR 10G Ethernet

Product Description

The XENPAK Module is a highly integrated, Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.

10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support

Our Service

OEM and ODM

OEM/ODM order is available.

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

Company Information

10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support

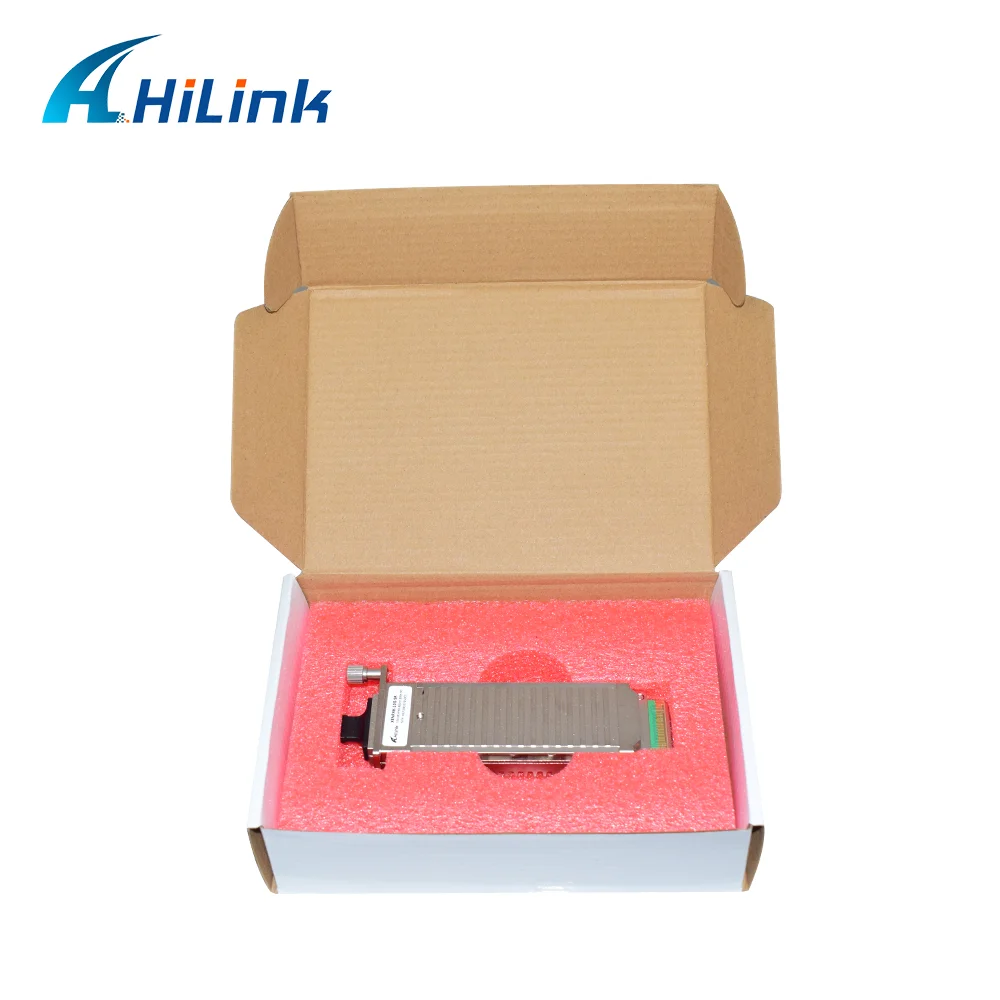

Packaging & Shipping

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support

Our Main Products

10GBASE-SR XENPAK 850nm 300m SC MMF Transceiver Module DOM Support

FAQ

1.Do you sell second-hand products?

No.All our products are brand new,we never use second-hand components.

2.What devices can your products compatible with?

Our products are compatible with mo

3.Do your products come with warranty?

Yes,We provide 3 years warranty for all our products from the date of shipment.

4.What’s the MOQ?

To achieve customer`s satisfaction,we accept sample order,even one Piece.

5.What payment terms do you accept?

T/T,Paypal,Western Union are acceptable.

6.How about Shipment?
Generally we support the International Express: DHL, FedEx,EMS,TNT, UPS and so on. It

takes 3-7 days.

7.How to get the Tracking information?
Our sales staff that you placed your order with,he/she will provide you with tracking information by email and over the phone.
