100GBASE-BX30 QSFP28 Single Fiber Bidirectional 1304nm/1309nm 30km LC Connector DDM Function For 5G Network

Name: 100GBASEBX30 QSFP28 Single Fiber Bidirectional 1304nm1309nm 30km LC Connector DDM Function For 5G Network
Brand: Hilink
Price: 1 USD

Brand Name : Hilink

Model Number : QSFP28-100G-BD-30km

Certification : CE Rohs

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : Send Inquiry know latest price

Payment Terms : T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance

Supply Ability : 2000 Pieces/Week

Delivery Time : 5-8 working day

Packaging Details : Plastic box+Carton

Product Name : QSFP28-100G-BD-30km

Data Rate : 100G

Reach : 30KM

Use : FTTH

Fiber Connector : Simplex LC

Wavelength : 1304nm/1309nm

Contact Now

New Launch 100GBASE-BX30 QSFP28 Single Fiber Bidirectional 1304nm/1309nm 30km LC Connector DDM Function For 5G Network

pls leave a message which compatibility Switch you need!

Modle	HL-QSFP-100G-SR BD	Vendor Name	Hilink
Form Type	QSFP28	Max Data Rate	100G
Wavelength	1304/1309NM	Max Cable Distance	30km
Interface	Simplex LC	Certificates	CE/Rohs
Product Name	100G QSFP+ Transceiver	DDM Support	Yes
Commercial Temperature Range	0 to 70°C (32 to 158°F)	HTS-Harmonized Code	8517795000

Product Features

Supports 100GBASE-LR1-20 BIDI
Lane signaling rate 106.25Gb/s with PAM4,111.8Gb/s compatible
Up to 30km transmission on SMF
EML Laser and PIN receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
High speed I/O electrical interface
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with simplex LC connector
Single +3.3V power supply
Support HW TX_DIS and RX_LOS for telecom application
Maximum power consumption 4.5 W
Operating case temperature: 0 to +70 °C
Compliant to 802.3cu, SFF-8636&SFF-8679 standard
Complies with EU Directive 2015/863/EU

Applications

100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections

Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS

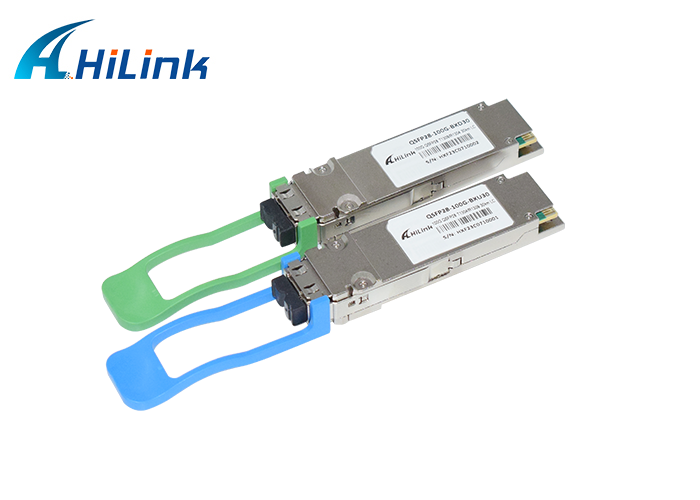

Real Photo Show

100GBASE-BX30 QSFP28 Single Fiber Bidirectional 1304nm/1309nm 30km LC Connector DDM Function For 5G Network

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
