QSFP28 100G EZR4 100KM SM LAN WDM EML& PIN With Duplex LC Transceiver Module With FEC
Product Description
This 100G QSFP28 eZR4 is designed for 100km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.
Recommended Operating conditions
| Parameter | Symbol | Min. | Typical | Max. | Unit | Notes |
| Operating Case Temperature | TC | 0 | | +70 | °C | |
| Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V | |
| Power Supply Current | ICC | | | 1.82 | A | |
| Maximum Power Dissipation | PD | | | 6 | W | |
| Aggregate Bit Rate | BRAVE | | 103.125 | | Gb/s | |
| Lane Bit Rate | BRLANE | | 25.78125 | | Gb/s | |
| Transmission Distance | TD | | | 100 | km | |
| Coupled fiber | Single mode fiber | 9/125um SMF |
Product Features
Support line rates from 103.125 Gb/s;
Lane bit rate 25.78 Gb/s 100GE
Up to 100km transmission with KR4-FEC.
LAN WDM EML laser and PIN receiver with SOA;
upport Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
High speed I/O electrical interface (CAUI-4);
I2C interface with integrated Digital Diagnostic monitoring;
QSFP28 MSA package with duplex LC connector;
Single +3.3V power supply;
Maximum power consumption 6 W;
Operating case temperature: 0 to +70 °C;
Complies with EU Directive 2015/863/EU;

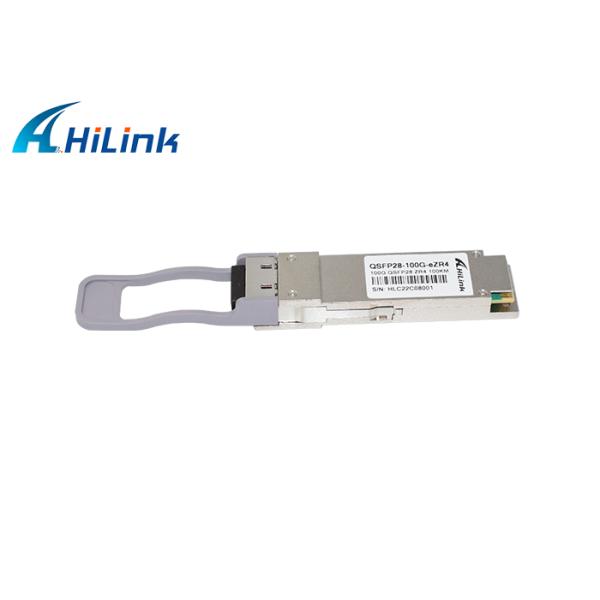

Real Picture
Package & Shipping
We provide safe and reliable packaging:Plastic box+Carton
Delivery time:3-5 working days
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
FAQ
Q: Do you provide samples? It is free or extra?
A: yes, we we provide sample, need to charge, if you have make bulk order next time, we will return sample fee.
Q: What is your MOQ and lead time?
A: MOQ 1 sample is avaliable.
Lead time, depends on the product quantity, actually sample lead time need1-3 days.
Q: What is yout term of payment?
A: We can accept T/T, Paypal,Wechat,.Alipay.other payment term, we can negotiate.
Q: Could i use our own logo and label?
A: Yes, we could provide OEM Service and make the products with your own label.
Hilink Advantage
--Hilink establish in 2007,Specialize in this field with around 10-year experience.
--Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
--We provide 3 years warranty for all our products from the date of shipment.
--We also provide DWDM CWDM Mux/Demux with optical solutions.
