Dual Fiber 155M 1.25G 2.5G 4G SFP Ethernet Transceiver Modules
Hilink ranges155M/1.25G/2.5G/4G SFP include SR LR ER ZR,CWDM/DWDM,BIDI series,complaint with MSA,SFF-8472,with the feature of low power consumption,commerical or industrial operation temperature and high reliability,suitable for DC,Metro and Transmission networks. This title ismainly for dual fiber SFP modules
| Form Type | SFP | Max Data Rate | 4Gbps |
| Wavelength | 850/1310/1550nm | Max Cable Distance | 160KM |
| Interface | LC duplex | Cable Type | MMF / SMF |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
-
Hot-pluggable SFP form factor
-
Compliant with SFP MSA standard
-
Compliant with IEEE 802.3z standards
-
Compliant with up to 4.25G Fibre Channel
-
Compliant with SONET and SDH
-
Single channel full-duplex transceiver module
-
Supports up to 4.25Gbps data rate
-
Dual LC receptacles
-
Single 3.3V power supply
-
RoHS-6 compliant (lead free)
-
Support industrial temperature: -40~85℃
Applications
Dual LC SFP series
| Part Number | Data Rate (M/s) | Wavelength (nm) | Distance | Source | Connector |
| HLSP1301L-CDM | 155 | 1310 | 500m | VCSEL/PIN | LC/PC |
| HLSP1301L-CD02 | 155 | 1310 | 2km | FP/PIN | LC/PC |
| HLSP3101L-CD20 | 155 | 1310 | 20km | FP/PIN | LC/PC |
| HLSP3101L-CD40 | 155 | 1310 | 40km | FP/PIN | LC/PC |
| HLSP5501L-CD80 | 155 | 1550 | 80km | DFB/PIN | LC/PC |
| HLSP5501L-CDH1 | 155 | 1550 | 100km | DFB/PIN | LC/PC |
| HLSP5501L-CDH2 | 155 | 1550 | 120km | DFB/APD | LC/PC |
| HLSP8512L -CDS5 | 1250 | 850 | 550m | VCSEL/PIN | LC/PC |
| HL SP3112L-CD02 | 1250 | 1310 | 2km | FP/PIN | LC/PC |
| HLSP3112L-CD20 | 1250 | 1310 | 20km | FP/PIN | LC/PC |
| HLSP3112L-CD40 | 1250 | 1310 | 40km | DFB/PIN | LC/PC |
| HLSP5512L -CD40 | 1250 | 1550 | 40km | DFB/PIN | LC/PC |
| HLSP5512L-CD80 | 1250 | 1550 | 80km | DFB/PIN | LC/PC |
| HLSP5512L-CDH1 | 1250 | 1550 | 100km | DFB/PIN | LC/PC |
| HLSP5501L-CDH2 | 1250 | 1550 | 120km | DFB/APD | LC/PC |
| HLSP8525L-CDS3 | 2500 | 850 | 300m | VCSEL/PIN | LC/PC |
| HLSP3125L-CD02 | 2500 | 1310 | 2km | FP/PIN | LC/PC |
| HLSP3125L -CD20 | 2500 | 1310 | 20km | DFB/PIN | LC/PC |
| HLSP3125L -CD40 | 2500 | 1310 | 40km | DFB/PIN | LC/PC |
| HLSP5525L -CD40 | 2500 | 1550 | 40km | DFB/PIN | LC/PC |
| HLSP5525L -CD80 | 2500 | 1550 | 80km | DFB/APD | LC/PC |
| HLSP5525L -CDH1 | 2500 | 1550 | 100km | DFB/APD | LC/PC |

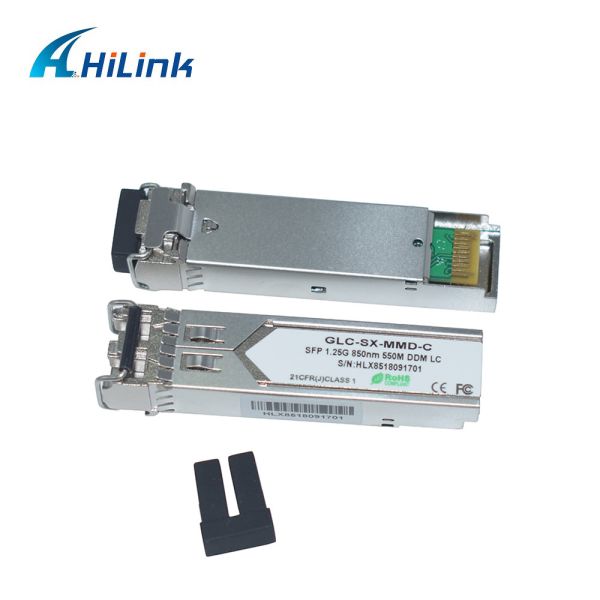

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
