1.25G 1000BASE 80KM 1550nm SMF 1.25G Optical Module LC SFP Module DOM
General:
1.25G 80KM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Features:
Up to 1.25Gb/s dual data links
Hot-pluggable SFP footprint
1550nm DFB laser transmitter
Duplex LC connector
Up to 80km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <700mW
Commercial operating temperature range: 0°C to +70°C
Applications:
1.25Gb/s 1000Base-ZX Ethernet
1.06 Gb/s Fibre Channel
Gigabit Ethernet Switches and Routers
Fiber Channel Switch Infrastructure
1000Base Transceiver Series:
| GLC-SX | 100BASE-SX SFP 850nm LC 550M |
| GLC-LX/LH | 100BASE-LH SFP 1310nm LC 10KM |
| GLC-EX-1310 | 100BASE-EX SFP 1310nm LC 40KM |
| GLC-EX-1550 | 100BASE-EX SFP 1510nm LC 40KM |
| GLC-ZX | 100BASE-ZX SFP 1550nm LC 80KM |
| GLC-ZX-120 | 100BASE-ZX SFP 1510nm LC 120KM |
| GLC-ZX-160 | 100BASE-ZX SFP 1550nm LC 160KM |
| GLC-ZX-200 | 100BASE-ZX SFP 1510nm LC 200KM |

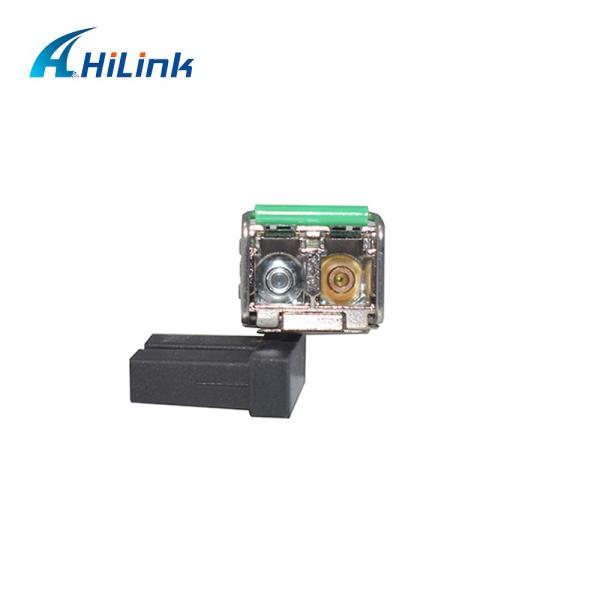

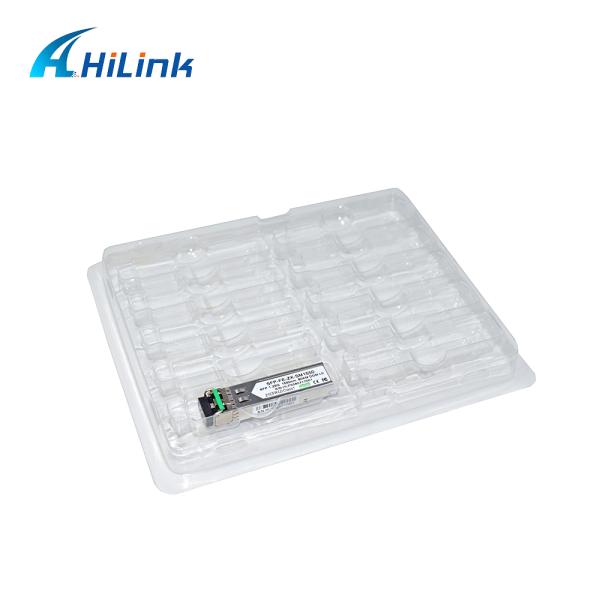

Product Picture:
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)Os
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Supply Voltage | Vcc | 3.00 | | 3.60 | V | |
| Supply Current | Icc | | 180 | 300 | mA | |
| Transmitter | | | | | | |
| Input differential impedance | Rin | | 100 | | Ω | 2 |
| Single ended data input swing | Vin, pp | 250 | | 1200 | mV | |
| Transmit Disable Voltage | VD | Vcc – 1.3 | | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | | Vee+ 0.8 | V | |
| Transmit Disable Assert Time | | | | 10 | us | |
| Receiver | | | | | | |
| Single ended data output swing | Vout, pp | 200 | | 800 | mV | 3 |
| Data output rise time | tr | | | 175 | ps | 4 |
| Data output fall time | tf | | | 175 | ps | 4 |
| LOS Fault | VLOS fault | Vcc – 0.5 | | VccHOST | V | 5 |
| LOS Normal | VLOS norm | Vee | | Vee+0.5 | V | 5 |
ptical Characteristics (TOP=25°C, Vcc=3.3 Volts)
Notes:
1. Non condensing.
2. AC coupled.
3. Into 100 ohm differential termination.
4. 20 – 80 %
5. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ and ΔDJ.
