STM-64 10G ZR 80KM 1550nm SMF 10GBASE 1550nm Dual LC Connector SFP Module
General:
HILINK’s HLSP551XL-C(I)D80 transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.
Order information:
| Part Number | Description |
| HLSP551XL-C(I)D80 | SFP+,9.95 to 11.3Gb/s, 1550nm EML,80km, 0~70℃, with DDM |
| HLSP551XL-C(I)D80 | SFP+,9.95 to 11.3Gb/s, 1550nm EML, 80km, -5~80℃, with DDM |
Features:
Supports 9.95 to 11.3Gb/s bit rates with Dual CDR
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled 1550nm EML transmitter, APD receiver
Applicable for 80km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431,SFF-8432
Operating case temperature:
Commerical:0 to 70 °C Industrial:-5 to 80 °C
Applications:
10GBASE-ZR at 10.3125Gbps
OTN G.709 OTU1e/2/2e
4x, 8x and 10x 10G Fiber Channel
Other optical links
10G Transceiver Series:
| 10G SFP Module | SFP-10G-SR | SFP 10G 850nm 300M LC DOM |
| SFP-10G-LR | SFP 10G 1310nm 10KM LC DOM |
| SFP-10G-ER | SFP 10G 1310nm 40KM LC DOM |
| SFP-10G-ER | SFP 10G 1550nm 40KM LC DOM |
| SFP-10G-ZR | SFP 10G 1550nm 80KM LC DOM |
| SFP-10G-ZR-100 | SFP 10G 1550nm 100KM LC DOM |
| SFP-10G-ZR-120 | SFP 10G 1550nm 120KM LC DOM |

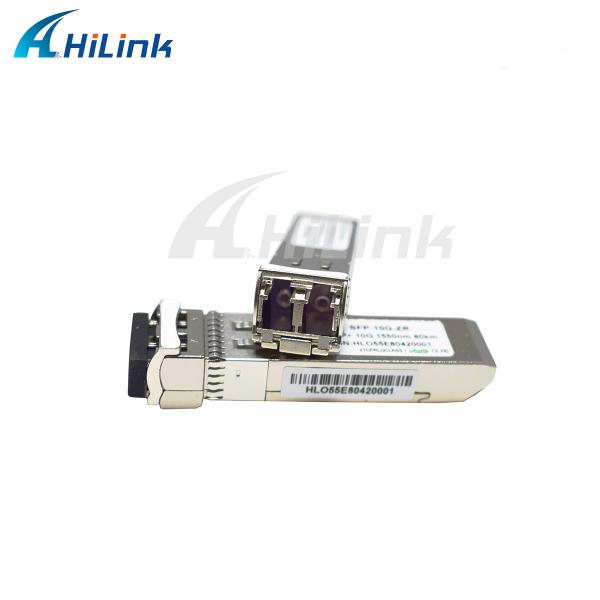

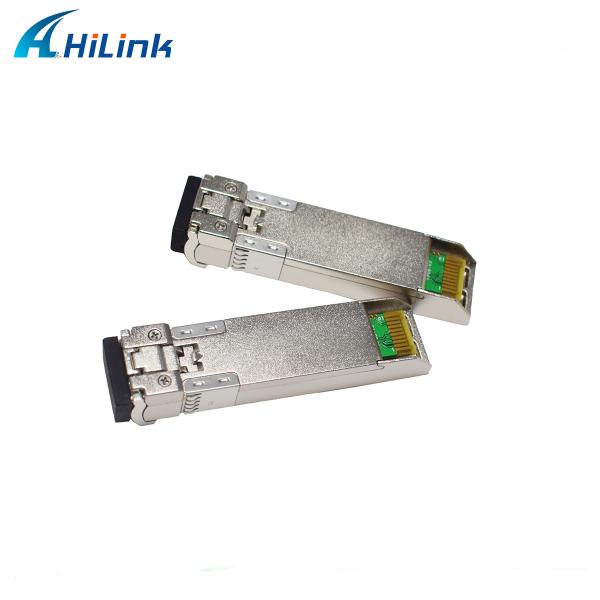

Product Picture:
Mechanical Specifications:
Guarantee:
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
Hilink specialize in wide range of sfp transceivers.
>SFP,SFP+,XFP,CWDM,DWDM
>CWDM/DWDM Mux Demux
>PLC Splitter,Media converter etc.
>Fiber optic cable(10g/40g aoc,dac and 40g/100g mpo cable)
