100G AOC 100G to 100G AOC QSFP28 to QSFP28 850nm Active Optical Cable OM3 OM4
The Hilink QSFP28 to QSFP28 AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ AOC for 100 Gigabit Ethernet and Infiniband EDR Applications. This AOC is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates HTD proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features
4 channels full-duplex transceiver modules
Supports 100Gbps total data rate
Transmission data rate up to28.05Gbpsper channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Low power consumption<3.5W
Hot Pluggable QSFP form factor
Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Single MPO connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant(lead free)
Applications
IEEE 802.3bm 100GBASE SR4
InfinibandEDR
128G Fibre Channel
4x28Gb/s Multimode OTN
Product Picture shows:
QSFP+AOC 100G
| QSFP28 100G-Optical cable | |
| QSFP28-100G-AOC1M | QSFP28 to QSFP28, Active optical cable 1M |
| QSFP28-100G-AOC3M | QSFP28 to QSFP28, Active optical cable 3M |
| QSFP28-100G-AOC5M | QSFP28 to QSFP28, Active optical cable 5M |
| QSFP28-100G-AOC7M | QSFP28 to QSFP28, Active optical cable 7M |
| QSFP28-100G-AOC10M | QSFP28 to QSFP28, Active optical cable 10M |
| QSFP28-100G-AOC20M | QSFP28 to QSFP28, Active optical cable 20M |
| QSFP28-100G-AOC30M | QSFP28 to QSFP28, Active optical cable 30M |
| QSFP28-100G-AOC50M | QSFP28 to QSFP28, Active optical cable 50M |
| QSFP28-100G-AOC100M | QSFP28 to QSFP28, Active optical cable 70M |
| QSFP28 100G Copper Cable | |
| QSFP28-H100G-CU1M | QSFP28 to QSFP28 Passive Copper Cable 1M |
| QSFP28-H100G-CU2M | QSFP28 to QSFP28 Passive Copper Cable 2M |
| QSFP28-H100G-CU3M | QSFP28 to QSFP28 Passive Copper Cable 3M |
| QSFP28-H100G-CU4M | QSFP28 to QSFP28 Passive Copper Cable 4M |
| QSFP28-H100G-CU5M | QSFP28 to QSFP28 Passive Copper Cable 5M |
| QSFP28-H100G-CU7M | QSFP28 to QSFP28 Passive Copper Cable 7M |
| QSFP28-H100G-CU10M | QSFP28 to QSFP28 Passive Copper Cable 10M |

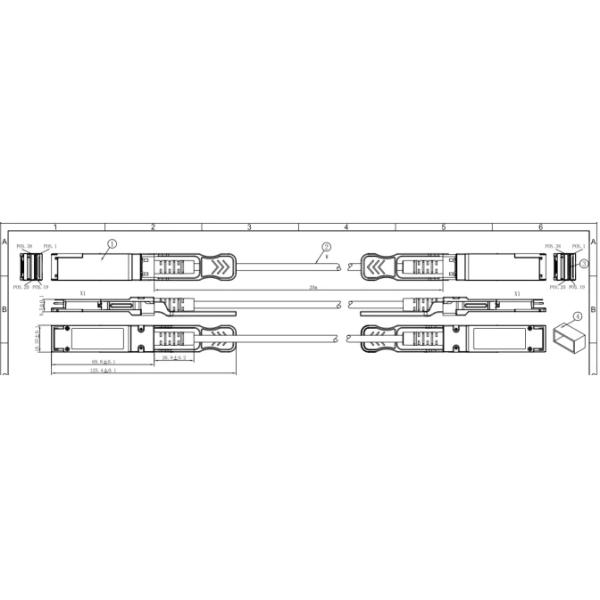

Mechanical Dimensions
OEM and ODM
OEM/ODM order is available.
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Mainstream switches.
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
