100G SR4 850nm 100m QSFP28 SR4 MMF 850nm SFP Transceiver DOM
100G QSFP28 SR4
The HL-QSFP28-SR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi mode fiber systems using850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP28 module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features: Four-channel full-duplex transceiver modules
Transmission data rate up to 25.78Gbit/s per channel
Up to 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
Low power consumption <2.5W
Operating case temperature 0℃ to 70℃
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP28 form factor
MPO connector receptacle
Built-in digital diagnostic function
Applications: 100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections
40G/100G SFP
| Part Number | Product Description |
| HL-QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM |
| HL-QSFP-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
| HL-QSFP-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
| HL-QSFP-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40K |

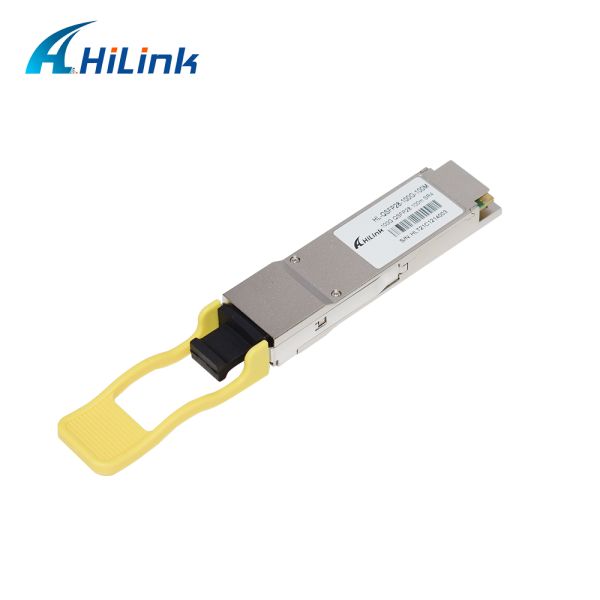

Product Picture Shows:
